| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HC9922 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 set per month |
| Product Name: | Rotating Barrel Test Apparatus | Barrel Number: | One Or Two |
|---|---|---|---|
| Speed Of Rotation: | 5 R/min | Falling Times: | 10 Times/min |
| Height Of The Falls: | 500mm | Application: | Appliance Mechanical Strength Test |
| Standard: | IEC 60335-1, IEC 60068-2-31 | Test Time: | 100 Or 50 Times |
| High Light: | 5r/min Home Appliance Testing Equipment,Rotating Barrel Home Appliance Testing Equipment |
||

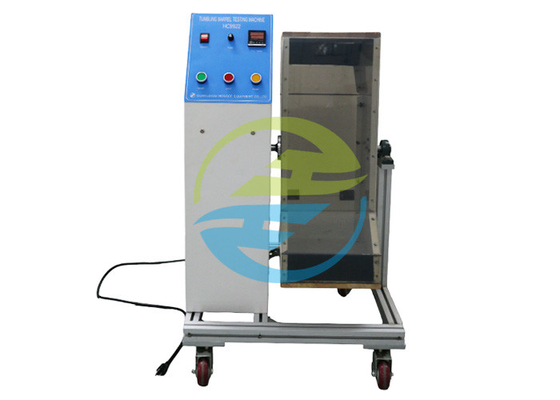

Home Appliance Testing Equipment Rotating Barrel Test Apparatus For Repeated Free Fall Test
Standard of Home Appliance Testing Equipment:
IEC 60335-1: 2020 Household and similar electrical appliances – Safety – Part 1: General requirements clause 21.1;
IEC 60068-2-31: 2008 Environmental testing – Part 2-31: Tests – Test Ec: Rough handling shocks, primarily for equipment-type specimens clause 5.3 and Annex A;
Application of Home Appliance Testing Equipment:
Appliances shall have adequate mechanical strength and be constructed to withstand such rough handling that may be expected in normal use.
For appliances and parts of appliances having pins for insertion into mains socket-outlets, compliance is checked by subjecting the part of the appliance incorporating the pins to the test, Free fall repeated, procedure 2, of IEC 60068-2-31.
Parameter of Rotating Barrel Test Apparatus:
| Model | HC9922 |
| Power Supply | 220V, 50Hz |
| Speed of rotation | 5 r/min |
| Falling times | 10 times/min |
| Counter | 0~9999 |
| Material | The body of the rotating barrek is of sheet of 1,5 mm thickness. The smooth,rigid, steel test surface at each end, 3 mm in thickness, is backed by wood of between 10 mm and 19 mm thickness. |
| Height | 500 mm |
