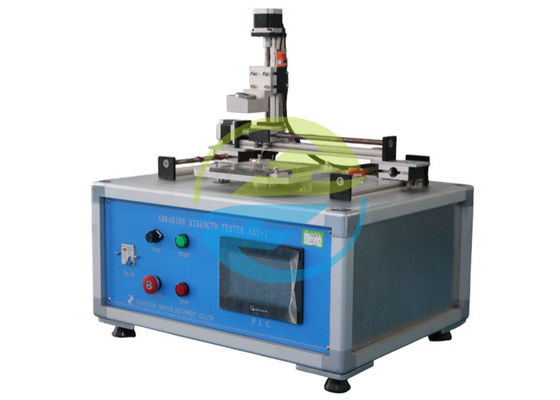

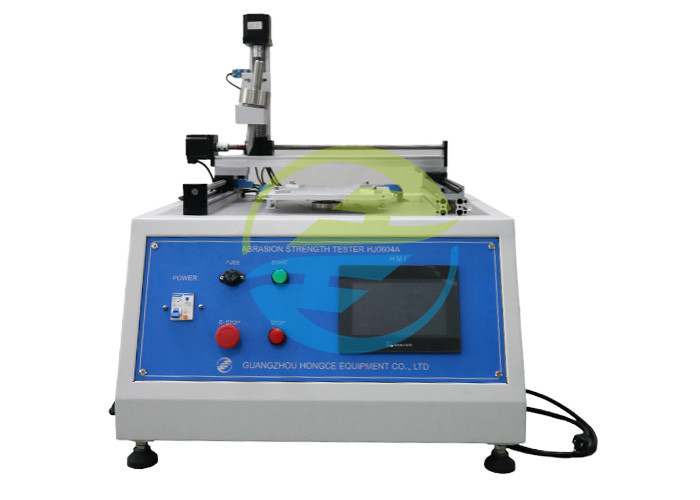

PLC Home Appliance Testing Equipment Scratched Test By Steel Pin With 10N Load

Brand Name:	HongCe
Model Number:	HJ0604
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Product Name:

Scratch Resistance Testing Equipment

Test Station:

One Station

Scratch Speed:

0-25mm/s Adjustable

Scratch Load:

10N±0.5N, 30N±0.5N

Scratch Angle:

80o To 85o

Control System:

PLC + Touch Screen

Application:

Scratch Resistance Testing

Drive Mode:

Stepper Motor Drive

Packaging Details:

Plywood

Highlight:

PLC Home Appliance Testing Equipment

10N Home Appliance Testing Equipment

Product Description

Home Appliance Testing Equipment Scratched Test By Steel Pin with 10N Load

Standard of Home Appliance Testing Equipment:

IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements clause 21.2.

Application of Steel Pin Scratch Resistance Testing Equipment:

Accessible parts of solid insulation of the Household and similar electrical appliances shall have sufficient strength to prevent penetration by sharp implements.

Parameter of Home Appliance Testing Equipment:

Input power supply	AC 220V/50Hz
Test station	One station
Control system	PLC + touch screen
Drive mode	Stepper motor drive
Scratch speed	0-25mm/s adjustable, can be preset
Scratch times	0-9999 times, can be preset
Scratch distance	Approximately 25 % of the length of the insulation, can be preset
Scratch load	10N±0.5N, it can be equipped with the weight of 20N to reach the scratch load of 30N±0.5N
Scratch pin	Hardened steel pin, the end of which has the form of a cone with an angle of 40^o. Its tip is rounded with a radius of 0,25 mm ± 0,02 mm
Scratch angle	80^o to 85^o to the horizontal
