| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration Certificate(cost additional) |
| Model Number: | HJ0636 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 50 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets per month |
| Product Name: | Washing Machine Door Performance Test Equipment | Usage: | Home Appliance Testing Equipment |
|---|---|---|---|
| Standard: | IEC 60335-2-7, IEC 60335-2-11 | Driving Mode: | Servo Motor |
| Open/Close Rate: | Adjustable | Testing Software: | Software In English |
| Control System: | PLC Programmable Control | Test Stations: | 2 Stations |
| High Light: | Washing Machine Home Appliance Testing Equipment,PLC Home Appliance Testing Equipment |
||

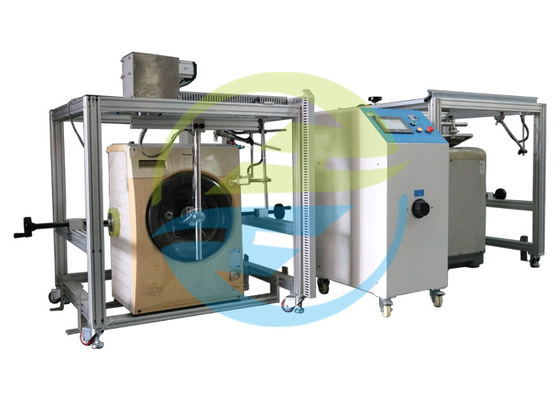

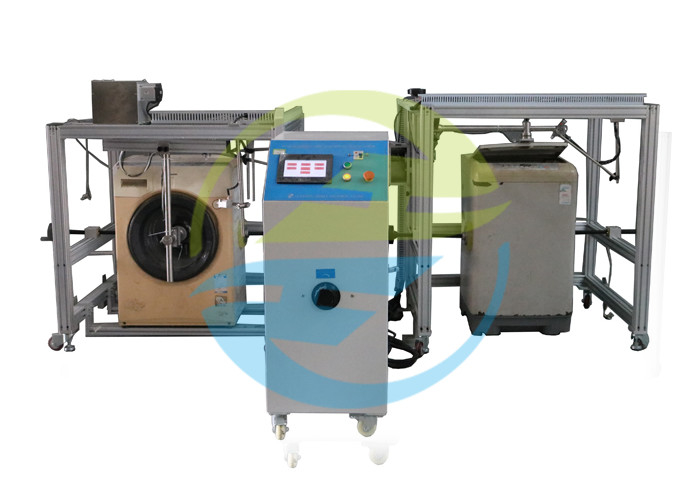

Washing Machine Home Appliance Testing Equipment Door Performance Test
Description of Washing Machine Door Performance Test Equipment:
The Washing Machine Door Performance Test Equipment is used to test whether the Appliances is be constructed so that the lid or door interlock withstands the stresses to which it may be exposed in normal use.
The device can be used to test washing machines with top & front load washing machine and tumble dryers.
Standard of Home Appliance Testing Equipment:
IEC 60335-2-7: 2016 Household and similar electrical appliances – Safety – Part 2-7: Particular requirements for washing machines, clause 18.101, clause 22.104;
IEC 60335-2-11:2008 Household and similar electrical appliances - Safety - Part 2-11: Particular requirements for tumble dryers, clause 20.101.
Feature of Home Appliance Testing Equipment:
The testing equipment used PLC intelligent control system, touch screen humanized operation interface can record and display the test data.
Load output to the tested sample is adjustable and display.
The test times, test speed, test stroke, open / close door pull force can be preset and real-time display on the touch screen.
Parameter of Home Appliance Testing Equipment:
| Control | advanced PLC |
| Display | true color liquid crystal display (7 Inch Touch screen) |
| Frame structure | High grade aluminum profile |
| Power supply | AC 230V 50HZ |
| Manipulator | Two, side manipulator and upper manipulator. Replaceable vacuum suction and gripping device. |
| Auxiliary mechanism | 0-50mm stroke adjustable |
| Floor adjustment mechanism | to adjust the sample level, tilt |
| Test times | 0-999999 preset, automatic stop when test time finished |
| Open/Close time | 0-9999S preset |
| Open/Close rate | Adjustable |
| Open angle | Side manipulator 0-180°, upper manipulator -30-90° |
| Station | Two independent station, one for left open washing machine and one for upper open washing machine |
