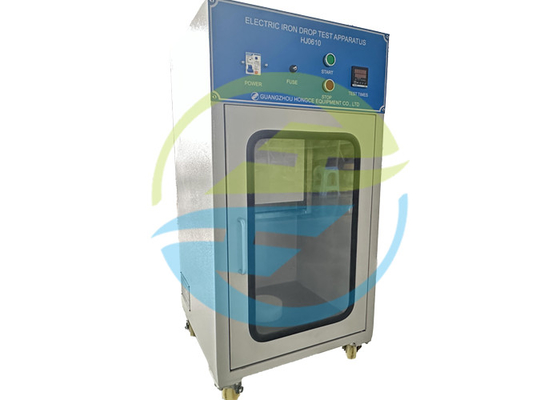

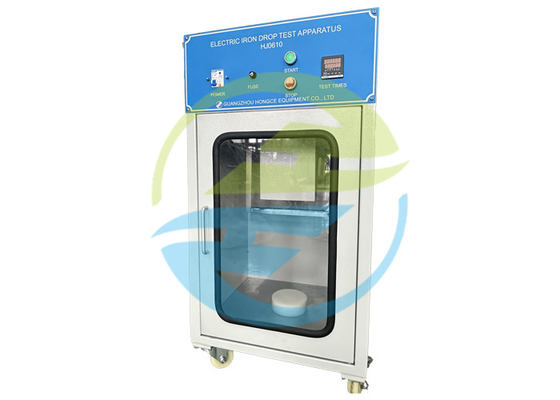

Home Appliance Testing Equipment For Iron Mechanical Strength Test With Rate 20 Drops Per Min

Home Appliance Testing Equipment For Iron Mechanical Strength Test With Rate 20 Drops Per Min

Brand Name:	HongCe
Model Number:	HJ0610
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Product Name:

Iron Drop Testing Equipment

Usage:

Iron Mechanical Strength Test

Standard:

IEC 60335-2-3

Test Time:

1 000 Times

Test Rate:

20 Drops Per Min

Drive Mode:

Electric Moto Driven

Grop Height:

40mm

Supported Steel Plate:

Thickness 15mm And At Least 15 Kg

Packaging Details:

Plywood

Highlight:

Mechanical Strength Home Appliance Testing Equipment

20 Drops Home Appliance Testing Equipment

Product Description

Home Appliance Testing Equipment For Iron Mechanical Strength Test with rate 20 drops per min

Standard of Home Appliance Testing Equipment:

IEC 60335-2-3 Household and similar electrical appliances – Safety: Part 2-3: Particular requirements for electric ions Clause 21.101;

IEC 60335-2-17 Household and similar electrical appliances – Safety: Part 2-17: Particular requirements for blankets, pads and similar flexible heating appliance Clause 21.101

Application of Home Appliance Testing Equipment:

It is used to test the mechanical strength of the electric iron in the normal operating conditions and with rated input power, also used for checking the drop resistance performance of the blanket’s control device.

Test sample of Home Appliance Testing Equipment:

Home appliance like Electric iron, control device of blankets and etc.

Feature:

The iron is then suspended by its handle with the soleplate in the horizontal position. It is dropped from a height of 40 mm onto a rigidly supported steel plate having a thickness of at least 15 mm and a mass of at least 15 kg. The test is carried out 1 000 times at a rate not exceeding 20 drops per min.

Parameters:

Parameters / Model	HJ0610
Input Power	AC240V 50HZ
Drive Mode	Electric moto driven, the drop action is achieved through the cam mechanism.
Test Cycles	1~999999, adjustable
Working Speed	≤20 r/minute
Dropping Height	40mm
Support Steel Plate	Thickness >15mm, weight >15kg
Dimension & Weight	5305601050mm,100kg
