Electric Cordless Kettle Insert Withdraw Durability Test Apparatus Single Workstation IEC60335 -2- 15

Electric Cordless Kettle Insert Withdraw Durability Test Apparatus Single Workstation IEC60335 -2- 15

Electric Cordless Kettle Insert Withdraw Durability Test Apparatus Single Workstation IEC60335 -2- 15

Brand Name: HongCe
Model Number: KP-1
MOQ: 1 set
Price: Negotiatable
Payment Terms: T/T, L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability: 10 set per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Standard:
IEC60335 -2- 15
Work Station:
Single
Drive Mode:
Electric
Working Stroke:
20 ~ 100mm
Working Speed:
5 ~ 15 Times/min
Packaging Details:
Plywood
Highlight:

portable appliance testing equipment

,

portable appliance tester

Product Description

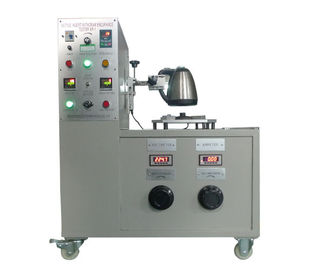

Electric Cordless Kettle Insert Withdraw Durability Test Apparatus





Product information:



The kettle insert withdraw endurance tester is designed and manufactured according to

the standard IEC60335 -2- 15 clause 22.103, used to test the service life of the cordless

kettle’ base contact. This device can be preset the number of trials (up to 999999 times),

can do load test and non load test. It can automatically record the number of test times

and the number of conduction times during the testing, when the actual test times

reaches to the the preset test times, the device will automatically shuts down.



Technical parameters:



Model

KP-1

Standard

IEC60335 -2- 15

Work station

Single

Drive mode

Electric

Working stroke

20 ~ 100mm, adjustable

Working speed

5 ~ 15 times/min, adjustable

Number of trials

1~999999, can be preset

Number of conduction

1~999999, can be preset

Output test current

0~13A, adjustable

Output voltage

200~280V, adjustable

Fixture

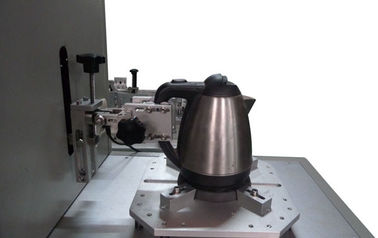

Lateral arm kettle clamp

Dimention

L*W*H=830*500*1050mm



Electric Cordless Kettle Insert Withdraw Durability Test Apparatus Single Workstation IEC60335 -2- 15 0

Calibration Certificate
