2 Work Stations Automatic Welding Sealing System Argon Arc Brazing Machine 100 pcs/hour

Brand Name:	HongCe
Model Number:	HJYHBZ01
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	1 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, FCC, ROSH (cost additional)

Sealing Method:

Argon Arc Welding

Work Stations:

Test Cycle:

100PCS/H

Control:

PLC

Packaging Details:

Plywood

Highlight:

auto brazing machine

automatic soldering machine

Product Description

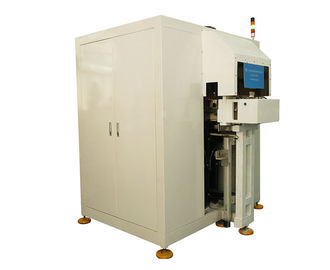

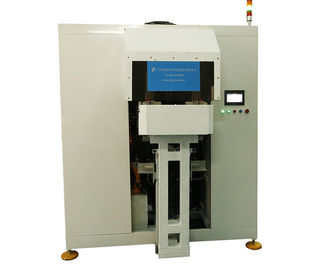

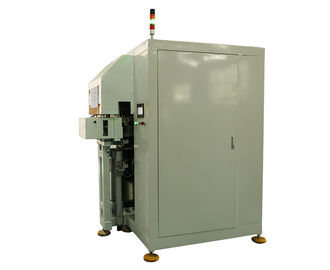

Automatic Argon Arc Welding and Sealing Machine

Product information:

This automatic welding and sealing machine is specifc manufactured for the workpiece which is filled with refrigerant and have a self-sealing joint. (This system does not support refrigerant charging for workpiece).

The working principle is through the automatic realization of the argon arc welding process, the effective control of the welding time and the welding position, the welding effect is well controlled to ensure the quality stability and consistency of the welding.

Technical parameters:

Workpiece size	1000mm(L)500mm(W)150mm(H)
Sealing method	Argon arc welding
Welding width	W<3.5mm
Workbench height	0.75m
Work stations	two
Test cycle	100PCS/H
System hardware	Automatic welding machine
	Touch screen
	PLC
	Electromagnetic valve
	Pneumatic Components
	Protection grating
	Indicator light
	Working lamp
	Station alarm light
	Emergency button
System software	PLC Program
	Select detection parameter group
	System calibration procedure
	PLC Mode
	System fault records
	Production records
	Touch screen interfaces

Working processes:

1. The operator installs the workpiece in position, then presses the OK button, and then the system’s automation process begins;

2. The system automatically crushes the workpiece;

3. The system automatically trims the workpiece;

4. The system automatically leads into the high-pressure gas, cleans the graphite layer, and then vacuums for secondary cleaning;

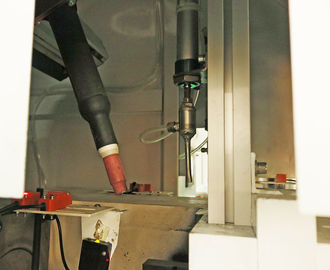

5. The argon arc welding torch automatically seals the workpiece, and after the sealing is completed, the signal light is on;

6. The operator presses the OK button and unloads the workpiece.
