Revolving Automatic Brazing Machine for Automotive Condenser Evaporator Water Tank 30s/pc

Brand Name:	HongCe
Model Number:	HHAB05
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

CE, FCC, ROSH(cost additional)

Applicable Products:

Automotive Condenser Evaporator

Production Cycle:

30s/pc

Combustion Gas:

Natural Gas Or Liquefied Petroleum Gas + Oxygen+air

Packaging Details:

Plywood

Highlight:

auto brazing machine

automatic welding machine

Product Description

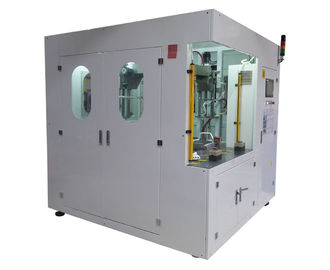

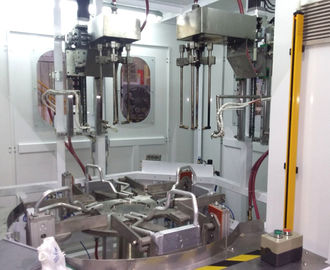

Auto Revolving Brazing Machine for Automotive Condenser Evaporator Water Tank

This revolving brazing machine is highly automated,provides automated soldering process, precisely control the welding heating time, and the gas flow by using a mass flow controller to achieve to precisely control the temperature of the soldering and solder bath, to ensure the stability and consistency of welding quality.
It is Indexed by the sophisticated automatic divider, can ensure that each welding angle error does not exceed 15 ".

Main Techincal Parameters:

Applicable Products	Automotive condenser/evaporator/water tank
Combustion gas	Natural gas or liquefied petroleum gas + oxygen+air
Welding products	Customized
Production tact	30s/pc
Workpiece diameter	Ф 6 mm, ------ Ф 50 mm
Ambient temperature	0℃-40℃
Relative humidity	30-98%RH
Solder ring requirements	Standard solder ring and standard welded wires

Main Function:

1. Automatically ignite and extinguish fire; Automatically switch the strength of the flame; keep flame stable, avoid tempering
2. With faulty alarm and self-diagnostic functions
3. Gas concentration detection function: when the gas concentration reaches to the 50% of explosive limit, the system will automatically shut down or close the gas valve, and alarm occurs.
4. Extinguishing with nitrogen: can avoid deflagration.
5. Power-off protection: the equipment will automatically fill in nitrogen
6. Emergency button: In urgent cases, the electrical and pneumatic system can be shut-off immediately, and starts extinguishing protection.

Main Configuration:

PLC	OMRON
Touch screen	OMRON
Solenoid valve	Burkert
Pneumatic parts	FESTO or SMC
Temperature sensor	RAYTEK
Concentration meter	RIKEN

Benefits analysis:

This equipment is quite cost-effective,the system can can weld workpiece 2500 pieces or more every 8 hour. The device can operate 20 hours continuously. Calculated in accordance with professional welders’ stage salaries, the investment cost of the equipment can be recovered by one year.

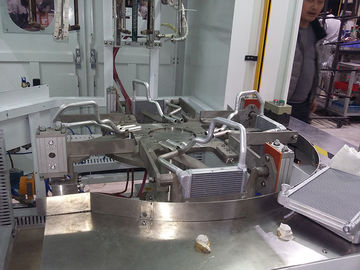

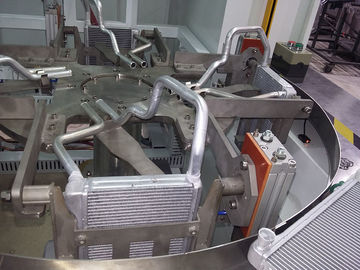

Reference photo for applicable Product:
