|Place of Origin:||China|
|Certification:||CE, ROSH, FCC|
|Minimum Order Quantity:||1 set|
|Supply Ability:||10 sets per month|
|Applicable Products:||Air Conditioning Heat Exchangers||Combustion Gas:||Natural Gas Or Liquefied Petroleum Gas + Oxygen+air|
|Production Tact:||12s/pc||Workpiece Diameter:||Ф 6 Mm~ Ф 50 Mm|
automatic welding machine,
automatic soldering machine

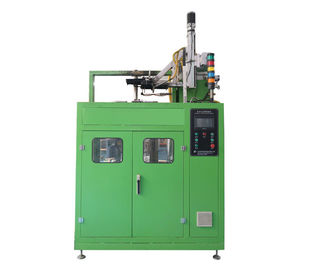

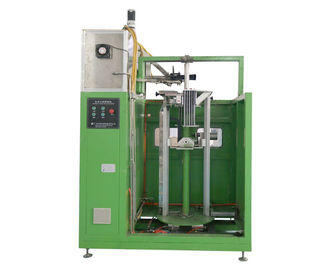

3D Automatic Flame Brazing Machine for Aluminum Heat exchangers and Castings 12s/pc
By providing automated brazing process, precisely controlling welding heating time, and controlling the gas flow by using a mass flow controller to achieve to precisely control the temperature of the soldering and solder bath, to ensure the stability and consistency of welding quality.
Indexing by the sophisticated automatic divider, can ensure that each welding angle error does not exceed 15 ".

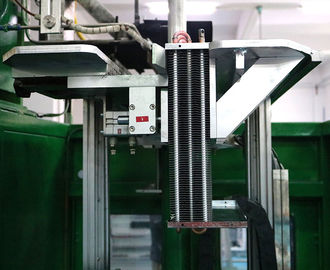

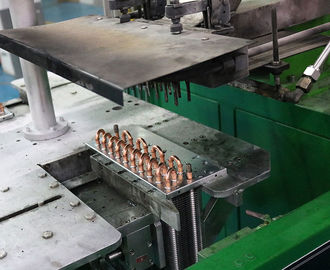

|Applicable Products||Air Conditioning Heat exchangers (air conditioning heat exchangers small U tubes)|
|Combustion gas||Natural gas or liquefied petroleum gas + oxygen+air|
|Production tact||one single tact 12s/pc|
|Workpiece diameter||Ф 6 mm, ------ Ф 50 mm|
|Solder ring requirements||Standard solder ring|
1. Can weld the workpieces which has side panels
2. Can weld any row and column of the workpieces
3. The fins of the workpieces will not change color during brazing process
1. Automatically ignite and extinguish fire; Automatically switch the strength of the flame; keep flame stable, avoid tempering
2. With faulty alarm and self-diagnostic functions
3. Gas concentration detection function: when the gas concentration reaches to the 50% of explosive limit, the system will automatically shut down or close the gas valve, and alarm occurs.
4. Extinguishing with nitrogen: can avoid deflagration.
5. Power-off protection: the equipment will automatically fill in nitrogen
6. Emergency button: In urgent cases, the electrical and pneumatic system can be shut-off immediately, and starts extinguishing protection.
Every 8 hours of production can reach 2500 pieces or more. The device can operate 20 hours continuously. Calculated in accordance with professional welders’ stage salaries, the investment cost of the equipment can be recovered by one year.
