3D Flame Automatic Brazing Machine for Air Conditioning Heat exchangers Small U Tube 12s/pc

Brand Name:	HongCe
Model Number:	HHAB04
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ROSH, FCC

Applicable Products:

Air Conditioning Heat Exchangers

Combustion Gas:

Natural Gas Or Liquefied Petroleum Gas + Oxygen+air

Production Tact:

12s/pc

Workpiece Diameter:

Ф 6 Mm~ Ф 50 Mm

Packaging Details:

Plywood

Highlight:

automatic welding machine

automatic soldering machine

Product Description

3D Automatic Flame Brazing Machine for Aluminum Heat exchangers and Castings 12s/pc

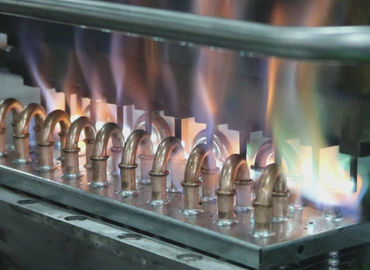

Working Principle:
By providing automated brazing process, precisely controlling welding heating time, and controlling the gas flow by using a mass flow controller to achieve to precisely control the temperature of the soldering and solder bath, to ensure the stability and consistency of welding quality.
Indexing by the sophisticated automatic divider, can ensure that each welding angle error does not exceed 15 ".

Item	Contents

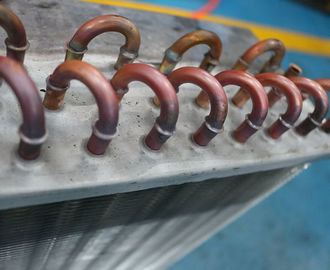

Applicable Products	Air Conditioning Heat exchangers (air conditioning heat exchangers small U tubes)
Combustion gas	Natural gas or liquefied petroleum gas + oxygen+air
Welding products	Customized
Production tact	one single tact 12s/pc
Workpiece diameter	Ф 6 mm, ------ Ф 50 mm
Ambient temperature	0℃-40℃
Relative humidity	30-98%RH
Solder ring requirements	Standard solder ring

Special Feature:
1. Can weld the workpieces which has side panels
2. Can weld any row and column of the workpieces
3. The fins of the workpieces will not change color during brazing process

Main Function:
1. Automatically ignite and extinguish fire; Automatically switch the strength of the flame; keep flame stable, avoid tempering
2. With faulty alarm and self-diagnostic functions
3. Gas concentration detection function: when the gas concentration reaches to the 50% of explosive limit, the system will automatically shut down or close the gas valve, and alarm occurs.
4. Extinguishing with nitrogen: can avoid deflagration.
5. Power-off protection: the equipment will automatically fill in nitrogen
6. Emergency button: In urgent cases, the electrical and pneumatic system can be shut-off immediately, and starts extinguishing protection.

Benefits analysis:
Every 8 hours of production can reach 2500 pieces or more. The device can operate 20 hours continuously. Calculated in accordance with professional welders’ stage salaries, the investment cost of the equipment can be recovered by one year.

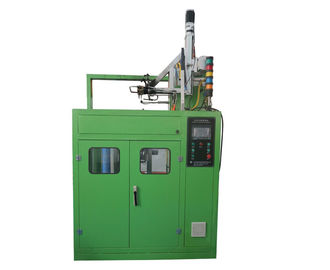

3D Flame Automatic Brazing Machine for Air Conditioning Heat exchangers Small U Tube 12s/pc 0

3D Flame Automatic Brazing Machine for Air Conditioning Heat exchangers Small U Tube 12s/pc 1
