Place of Origin: | China |
Brand Name: | HongCe |
Certification: | Third party calibration certificate(cost additional) |
Model Number: | AP-1 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiatable |
Packaging Details: | Plywood |
Delivery Time: | 25 days |
Payment Terms: | T/T |
Supply Ability: | 10 sets per month |
Highlight: | light testing equipment,led light tester |
---|

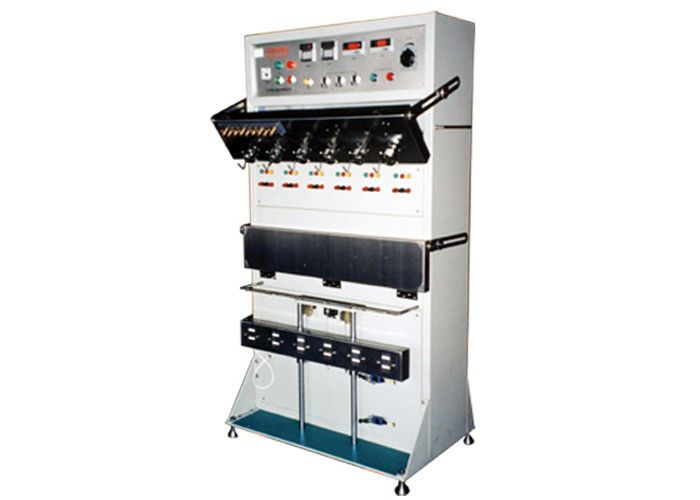

Attaching Plug Tension Tester
Product information:
This device complies with UL817 standard which is applicable in the assessment of the connection intensity between the molded power plug and guide line, and the guide wire’s anti- sudden tensile strength. Four tests can be achieved. They are the tests of sudden pulling, reversing, current and load.
Technical requirements and Working Environment:
1. Power supply:AC 220V 50Hz
2. Load current:0~50A Adjustable
3. Load voltage:6~12V
4. Working station: 6
5. Test number:1~9999
6. Testing time:0.1~999.9S
7. Load weight:5000g*2pcs, 1000g,500g,250g,100g *4pcs for each
8. Environment temperature:0~40℃
9. Environment humidity:<85%
10.No violent shake, shock, vibration and the places where no corrosive air.
