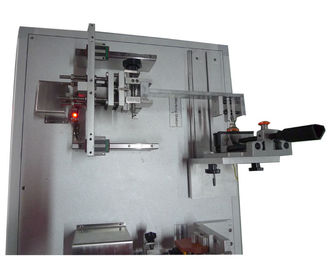

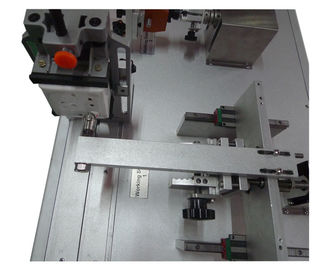

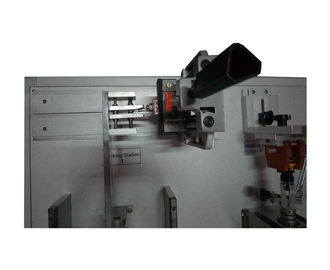

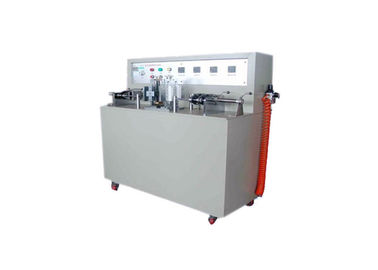

GB2099.1-2008 Plug Socket Tester Sockets and Outlets Lifespan Tester

GB2099.1-2008 Plug Socket Tester Sockets and Outlets Lifespan Tester

  • GB2099.1-2008 Plug Socket Tester Sockets and Outlets Lifespan Tester
  • GB2099.1-2008 Plug Socket Tester Sockets and Outlets Lifespan Tester
  • GB2099.1-2008 Plug Socket Tester Sockets and Outlets Lifespan Tester
  • GB2099.1-2008 Plug Socket Tester Sockets and Outlets Lifespan Tester
GB2099.1-2008 Plug Socket Tester Sockets and Outlets Lifespan Tester
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: SOL-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 set per month
Contact Now
Detailed Product Description
Air Source: 5 ~ 8 Kg/cm² Working Station: 2
Test Times: 0-999999, Preset Rotate Angle: 0-360°, Preset
High Light:

electric socket tester

,

electrical plug tester

Sockets and Outlets Lifespan Tester





Product overview:

This device complies with standard terms of 20, 21 in GB2099.1-2008 (figure 16) IEC884-1(figure 16). It can be used for the test of breaking volume of socket and outlet, and mechanical action of normal operation lifespan test. It is also used for the lifespan test and the capability of all kinds of linear switches. This equipment uses pneumatic unit as motive power and its power-on time and intermittent time can be adjusted.



Technical parameters:

Air source: 5 ~ 8 kg/cm²

Setting experiment time: 0.1 ~ 999.9 S can be set (four number displayed)

Working station: 2

  It is equipped with the plug and socket clamp and switch jig

It is also equipped with wiring terminal through which the tester can be connected with the load box for the load test.



Power supply AC 220V±10% 50Hz
Operation interface 7 inch color LCD touch screen
Drive mode servo motor + ball screw / timing belt or pneumatic
Control system PLC control
Stations

2 Stations:

1 liner stations;

1 rotating stations.

Independent control

Test sample Button switch, rocker switch, toggle switch, rotary switch, plug and socket
Test times 0-999999, preset
Connecting time 0-99.9s, preset
Liner stroke 0-100mm, preset
Rotate angle 0-360°, preset
Test speed

15 times per min

7.5 times per min

30 times per min

Clamp XYZ three axis clamp

Test mechanism

(multi)

Button switch push rod, toggle switch mechanism, rocker switch pulley mechanism
Load ports 2 ports

GB2099.1-2008 Plug Socket Tester Sockets and Outlets Lifespan Tester 0
