Six-Channel Thermocouple Temperature Rise Measurement System 0-40A Linear Current Source IEC60884-1 Clause 19 PT100

Brand Name:	HongCe
Model Number:	HC9910C
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T,L/C
Supply Ability:	10 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Calibration Certificate (Cost Additional)

Number Of Stations:

6 Stations

Test Current:

0-40A AC

Output Voltage:

12V AC At 40A

Temperature Sensor:

T-type Thermocouple (Cu-CuNi)

Temperature Range:

0°C To +200°C

Temperature Accuracy:

±0.3°C Or ±0.5% Of Reading

Power Supply:

AC 380V ±10%, 50Hz, Three-phase 5-wire

Net Weight:

Approximately 420 Kg

Packaging Details:

Export-grade plywood case with high-density foam insert, vacuum-sealed moisture barrier, reinforced steel strapping

Highlight:

IEC60884-1 Temperature Rise Measurement System

6 Stations Temperature Rise Measurement System

Product Description

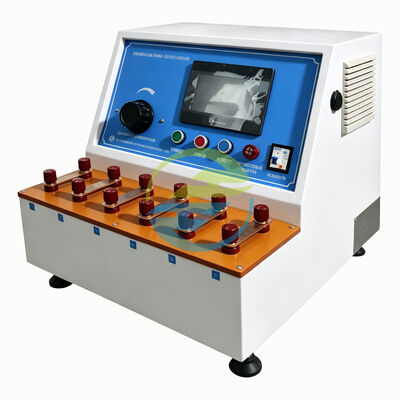

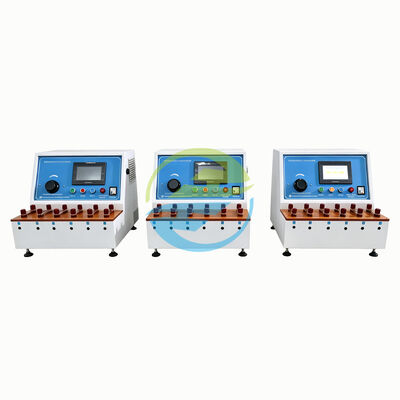

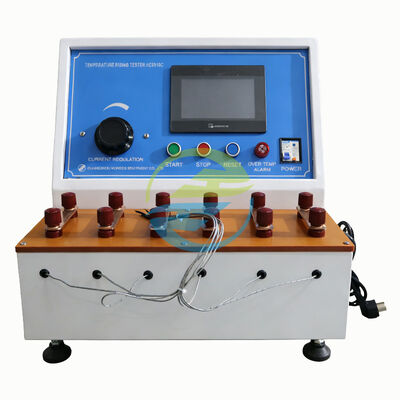

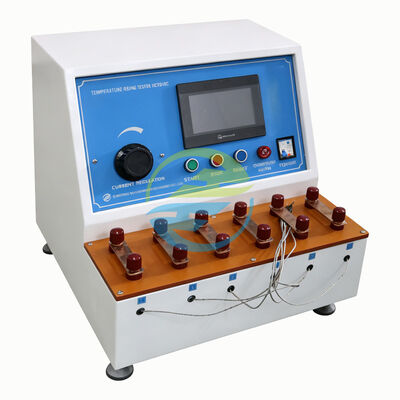

Six-Channel Thermocouple Temperature Rise Measurement System 0-40A Linear Current Source

Product Overview

The Six-Station 0-40A Adjustable Current Temperature Rise Tester by HongCe is a precision thermal evaluation instrument designed for measuring temperature rise in plugs, socket-outlets, connectors, terminals, and electrical contacts under continuous rated current conditions. Fully compliant with international standards including IEC 60884-1, IEC 60669-1, and IEC 60309-1, this system delivers accurate, repeatable thermal performance data essential for product safety certification and quality assessment.

Key Features

Six Independent Test Stations: Each with dedicated linear current sources delivering 0-40A AC with <1% THD
36-Channel Precision Thermocouple System: T-type thermocouples with independent cold junction compensation and galvanic isolation
Automatic Thermal Equilibrium Detection: PLC-controlled algorithm per IEC 60884-1 Clause 19.3
Ambient Temperature Compensation: PT100 RTD reference with ±0.1°C accuracy
10-Inch Color HMI Touch Screen: Real-time monitoring with multi-channel trending
Comprehensive Data Recording: Configurable logging intervals with CSV export capability
Over-Temperature Protection: User-configurable thresholds with automatic current ramp-down
Industrial Construction: Forced-air cooling with thermostatic control

Testing Functions

IEC 60884-1 Clause 19 Temperature Rise testing
IEC 60669-1 Clause 18 Switch Temperature Rise evaluation
Multi-point thermal mapping for hot-spot identification
Comparative thermal performance analysis
Long-duration thermal stability studies
Production lot sampling for quality control

Technical Specifications

Parameter	Specification
Test Stations	6 independent stations, expandable
Test Current	0-40A AC, ±0.5% accuracy, THD <1%
Output Voltage	12V AC at 40A (480 VA per station)
Temperature Sensors	T-type thermocouples with PT100 ambient reference
Temperature Channels	36 channels total (6 per station), galvanic isolation 500V DC
Temperature Range	0°C to +200°C, ±0.3°C accuracy
Display System	10-inch 1024×600 color TFT HMI touch screen
Power Supply	AC 380V ±10%, 50Hz, three-phase, 4 kVA maximum
Data Export	USB 2.0 (CSV), RS-232, optional RS-485 Modbus RTU
Dimensions	1400 × 800 × 1700 mm (W×D×H)
Weight	Approximately 420 kg

Compatible Test Objects

Household plugs (2.5A-16A at 250V AC)
Fixed socket-outlets and portable adapters
Appliance couplers (IEC 60320 C13/C14, C15/C16, C19/C20)
Industrial connectors (IEC 60309, 16A/32A)
Connection terminals and junction boxes
USB charging socket-outlets with AC-DC converters

Core Technology

Linear Regulated Current Source: Pure sinusoidal waveform with <1% THD eliminates harmonic heating artifacts
Automatic Thermal Equilibrium Algorithm: Real-time sliding-window computation eliminates operator judgment variability
Per-Channel Cold Junction Compensation: Individual PT100 RTD sensors achieve ±0.3°C system accuracy

International Standards Compliance

Standard	Clause(s)	Requirements
IEC 60884-1:2013	Clause 19.1-19.4	Temperature rise test with limits: terminals ≤45K, accessible metal ≤40K
IEC 60669-1:2017	Clause 18	Switch temperature rise: terminals ≤45K, ≤30K for switches ≤16A
IEC 60309-1:2021	Clause 22	Temperature rise for industrial plugs/socket-outlets
GB/T 2099.1-2008	Clause 19	China national standard equivalent to IEC 60884-1
BS 1363-1:2023	Clause 17	UK standard temperature rise test for BS 1363 plugs

Manufacturer Note: HongCe is an ISO 9001:2015 certified source factory manufacturer with comprehensive in-house manufacturing capabilities including CNC machining, heat treatment, precision grinding, and calibration services. All equipment includes 12-month warranty and lifetime technical support.
