40N ± 2N Switch Tester Coupling Implement Shell Pressure Test Device

Brand Name:	HongCe
Model Number:	SF-1
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	15 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

Plywood

Highlight:

electrical socket tester

switch life tester

Product Description

Coupling Implement Shell Pressure Test Device

Product Information:

This device is according to the IEC60320-1 standard requirement to design. Appliance inlets designed for surface mounting and having a shroud of metal, are compressed in an appropriate test apparatus, an example of which is shown in figure 20. The spherical end of the jaws shall have a radius of 20mm±1mm. A force of 40N±2N shall be applied for 60s±6s through the jaws to the most unfavourable point half-way up the outer surface of the shroud, in a direction perpendicular to the axis of the shroud.

After the test, there shall be no deformation or loosening of the shroud such as will impair the further use of the appliance inlet.

Technical Parameters:

1. The radius of up and down jaws: 20mm;

2. Stroke is adjustable: 0-50mm;

3. Pressure: 40N±2N;

4. Test time: Manual operation, 60S.

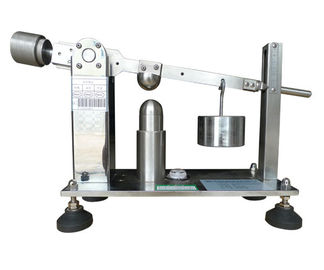

40N ± 2N Switch Tester Coupling Implement Shell Pressure Test Device 0
