Fluorescent Lamp Holder Axial Force Tester Luminaries Test Equipment IEC60598-1

Brand Name:	HongCe
Model Number:	HT-LHA1
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T, Western Union
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

Standard:

IEC60598-1

Specimen Height Range:

0-250mm

Fixtures:

V-type Fixture

Power:

220V/ 50Hz Or 110V/60Hz

Packaging Details:

Plywood

Highlight:

led light tester

luminaire testing

Product Description

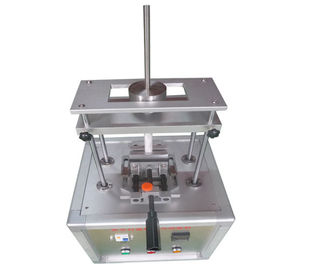

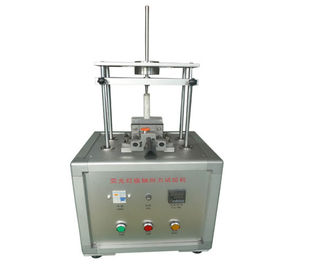

Fluorescent Lamp Holder Axial Force Tester

Product information:

The test equipment is designed and manufactured according to IEC60598-1 clause 4.4.4 standard test item requirements, test content: axial pressure is applied to the G5 lamp holder of 15N, 30N axial pressure exerted on the G13 lamp holders, pressure holding time I minutes, then quit, deformation detection lamp holder shall not exceed the amount of light foot length of 1 / 4.

It relates to an axial force testing device for a fluorescent lamp holder. The axial force testing device is characterized by comprising a base, wherein a test seat for positioning the lamp holder is arranged in the middle of the base, one side of the test seat is provided with a range finder, the other side of the test seat is provided with a linear guide rail, a thrust seat is installed on a sliding block of the linear guide rail, a pressure sensor and a test pressure head are installed on the thrust seat, and a stepping motor is connected with the thrust seat through a screw rod and a screw rod nut.

Technical parameters:

Power	220V 50Hz
The axial force	15N (bar weight), 30N (superimposed by a 15N vias weight onto the bar)
Fixtures	V-type fixture, front and back adjustable
Holding specimen height range	0-250mm
