2 mm Thickness Clause 24.17 And 24.18 Figure 32 Stainless Steel Cover Plate Gauge

Brand Name:	HongCe
Model Number:	HC9930
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	30 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Material:

Stainless Steel

Size:

Thickness 2 Mm

Standard:

IEC60884-1

Packaging Details:

Plywood

Highlight:

socket tester

electrical plug tester

Product Description

IEC60884-1 clause 24.17 and 24.18 figure 32 stainless steel cover plate gauge

Standard:

IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 24.17 and 24.18, figure 32.

Application:

It is used to check the contour line of the cover or the cover plate. It has become an indispensable and important equipment in household appliances manufacturer, quality inspection departments and R & D institution detected safety performance of household electrical products.

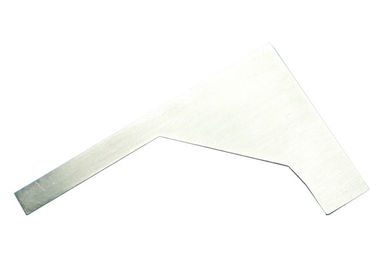

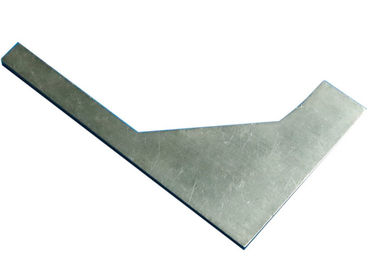

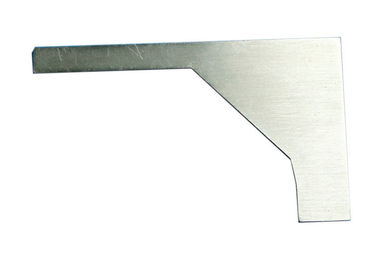

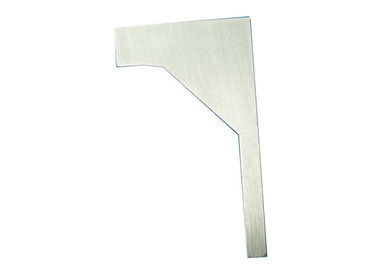

2 mm Thickness Clause 24.17 And 24.18 Figure 32 Stainless Steel Cover Plate Gauge 0

Test sample:

Check the contour of the cover or cover plate

Parameters:

Material	Stainless steel
Size	Thickness 2 mm

Operation Steps:

Please refer to IEC60884-1, the gauge shown in figure 32 is pushed toward each side of each cover or cover-plate which is fixed without screws on a mounting or supporting surface, as shown in figure 33. The face B resting on the mounting / supporting surface, with the face A perpendicular to it, the gauge is applied at right angles to each side under test.

The distances between face C of the gauge and the outline of the side under test, measured parallel to face B, shall not decrease (with the exception of grooves, holes, reverse tapers or the like, placed at a distance less than 7 mm from a plane including face B and complying with the test of 24.18) when measurements are repeated, starting from point X in the direction of the arrow Y (see figure 34).
