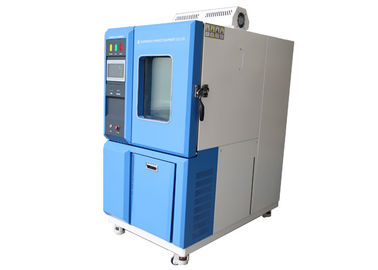

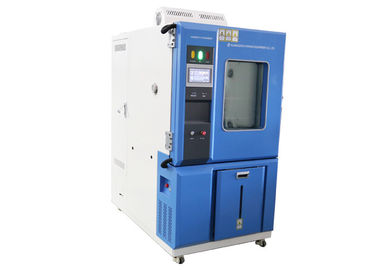

Wide Control Range Temperature And Humidity Chamber For Rapid Temperature Changes With Humidity Control

Wide Control Range Temperature And Humidity Chamber For Rapid Temperature Changes With Humidity Control

  • Wide Control Range Temperature And Humidity Chamber For Rapid Temperature Changes With Humidity Control
  • Wide Control Range Temperature And Humidity Chamber For Rapid Temperature Changes With Humidity Control
  • Wide Control Range Temperature And Humidity Chamber For Rapid Temperature Changes With Humidity Control
  • Wide Control Range Temperature And Humidity Chamber For Rapid Temperature Changes With Humidity Control
  • Wide Control Range Temperature And Humidity Chamber For Rapid Temperature Changes With Humidity Control
Wide Control Range Temperature And Humidity Chamber For Rapid Temperature Changes With Humidity Control
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HH0811A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 10 Set per month
Contact Now
Detailed Product Description
Warranty: One Year Controller: Programmable Color Touch Screen Type
Material: SUS#304 Test Temperature: -40~150℃
High Light:

iec testing equipment

,

laboratory test equipment

IEC 60068-2 Programmable Temperature And Humidity Chamber , Wide Temperature Control Range





Product information:



The test device is designed and manufactured according to IEC 60068-2, Test methods-test A: cold, test B: dry heat, test Cab: damp heat, steady state, test Db: damp heat, cyclic.



Feature:



1. It has an extremely wide temperature control range to meet the various needs of users.

2. It adopts a unique balanced temperature adjustment and humidity control mode to adjust the ideal temperature and humidity environment. With stable, balanced heating and humidifying capability, it can control high temperature and high stability temperature and humidity.

3. Automatic selection of refrigeration circuit: The automatic control device has the function of automatically selecting the running refrigeration circuit with the set value of temperature, and realizes the cooling of the chiller directly under the high temperature state. The refrigeration adopts the air-cooled compressor unit and adopts the fully enclosed compressor.

4. The door is equipped with a light observation window, which is convenient for observing the test state of the test sample.



Parameter:



Product Name Programmable Temperature Humidity Chamber
Volume, size and weight
Working Volume 150L (can be customized)
Inner size W600mm × H600mm × D460mm
Outer size W900mm × H1800mm × D1500mm
Weight 300KG
Temperature controller 7-inch programmable controller (touch screen)
Performance
Temperature range -40℃~+150℃
Humidity range

20-98%HR

Wide Control Range Temperature And Humidity Chamber For Rapid Temperature Changes With Humidity Control 0

Temperature fluctuation ±1℃
Humidity fluctuation ±3% RH
Temperature uniformity 2℃
Heating up time 3-5℃/min (Average heating up rate)
Cooling down time 0.7-1℃/min (Average cooling down rate)
Structure
Outer material Backed painting steel
Inner wall material SUS304# mirror stainless steel plate
Insulation materials Polyurethane foam or high density superfine imported glass wool.
Observation window The conductive film tempered glass is used, and the lighting equipment uses a new type PL energy-saving fluorescent lamp.
Fan Centrifugal fan
Heater U-shaped fin type, stainless steel high-speed heating electric heater.
Refrigeration Compressors France-TECUMSEH
Refrigeration mode Air-cooled type

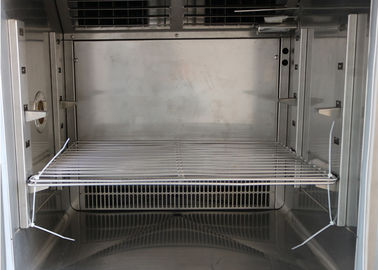

Sample holder 2 layers
safety protection Fan overload protection, compression and overheat protection, overpressure protection, over temperature protection, humidification and water shortage protection
Power supply 1∮, AC380V±10% 50Hz, about 4500W



Structure:



1. Chamber structure:

The overall structure, the test box is assembled with A3 iron plate spray plastic and SUS304 stainless steel plate. Observed from the front of the chamber door, the upper area is the working room, the lower area is the refrigeration unit, and the left side is electric control cabinet.



2. Material composition:

2.1 Outer wall material: 3A cold-rolled steel sheet with electrostatic double-sided plastic spray, color is pearl white

2.2 Inner wall material: SUS304 stainless steel plate

2.3 Thermal insulation material: 100mm rigid polyurethane foam



3. Structural strength:

Load capacity of test chamber floor: ≤100Kg (uniform load)

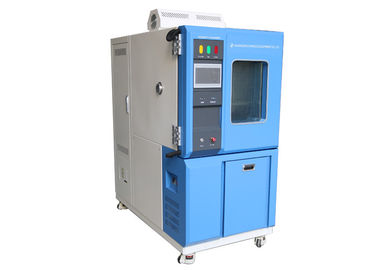

Wide Control Range Temperature And Humidity Chamber For Rapid Temperature Changes With Humidity Control 1

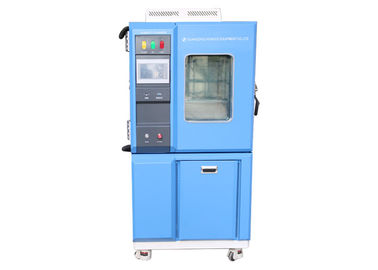

Wide Control Range Temperature And Humidity Chamber For Rapid Temperature Changes With Humidity Control 2
