IEC60669-1 LED Testing Equipment / Self Ballasted Lamp Switches Fully Automatic Breaking Capacity Endurance Tester

IEC60669-1 LED Testing Equipment / Self Ballasted Lamp Switches Fully Automatic Breaking Capacity Endurance Tester

  • IEC60669-1 LED Testing Equipment / Self Ballasted Lamp Switches Fully Automatic Breaking Capacity Endurance Tester
  • IEC60669-1 LED Testing Equipment / Self Ballasted Lamp Switches Fully Automatic Breaking Capacity Endurance Tester
  • IEC60669-1 LED Testing Equipment / Self Ballasted Lamp Switches Fully Automatic Breaking Capacity Endurance Tester
  • IEC60669-1 LED Testing Equipment / Self Ballasted Lamp Switches Fully Automatic Breaking Capacity Endurance Tester
IEC60669-1 LED Testing Equipment / Self Ballasted Lamp Switches Fully Automatic Breaking Capacity Endurance Tester
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: calibration certificate(cost additional)
Model Number: HK1504
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 10 set /month
Contact Now
Detailed Product Description
Standard: IEC60669 Test Sample: Self Ballasted Lamp Switches
Control: PLC Control Station: 3 Stations
Test Stroke: 0.1~100mm Test Speed: 0.1~200mm/s
High Light:

light testing equipment

,

luminaire testing

IEC60669-1 Self Ballasted Lamp Switches PLC Control Fully Automatic Breaking Capacity Endurance Tester



Product introduction :

This device is suitable for breaking capacity and normal operation life test of switches intended for self ballasted lamp loads. Switches intended for self ballasted lamp (SBL) loads shall withstand, without excessive wear or other harmful effect, the electrical and thermal stresses occurring when controlling self ballasted lamp circuits. To verify whether the switch has sustained arcing nor welding of the contacts occur, any contacts adhesion phenomenon or long term closure or disconnection phenomenon, to test whether excessive wear or other harmful consequences.

This system is designed and manufactured according to the standard of IEC60669-1:2017 clause 19.3 and IEC60669-2-1:2015 clause 19.109. It is a fully automatic test system based on the test readability of a switch with a rated voltage of 250V, including an intelligent industrial control system (built-in oscilloscope), a switch endurance tester, and a self-ballasted lamp load box. (The switch with rated voltage of 130V needs to be separately configured with self-ballasted lamp load box)



Product feature :

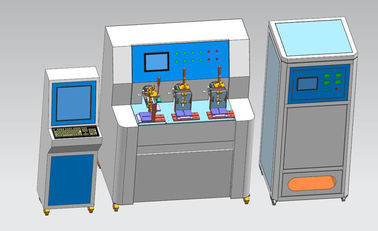

1. The system consists of an intelligent industrial control system, a switch endurance tester, and a self-ballasted lamp load box. Among them, the switch life tester and the self-ballasted lamp load box can be used separately.

2. The intelligent industrial control system is mainly for IEC60669-1:2017 clause 19.3, built-in oscilloscope, when the LED light switch is turned on, it can collect the voltage, current, current peak value Ipeak and integral value I2t of this circuit, and can output current waveform. And through system calculation, compared with the standard data, make a qualified or unqualified judgment.

3. The switch life tester consists of three independent linear mechanisms and an electric control system. It can used to test the making and braking capacity of the linear switch (button, rocker, ship type, toggle) and normal operation test. The machine is driven by servo motor and controlled by PLC. It can set the test times, test speed, ‘on’ period(25+5 0%) ‘off’ period (750 -5%)time and test stroke. With load connection port, different test loads can be connected as needed, such as tungsten filament lamp load, externally ballasted lamp load, TV load, inductive load, capacitive load, motor load and so on.

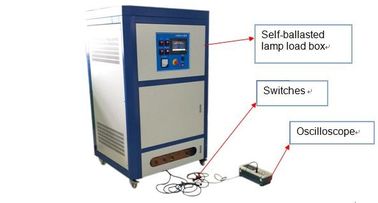

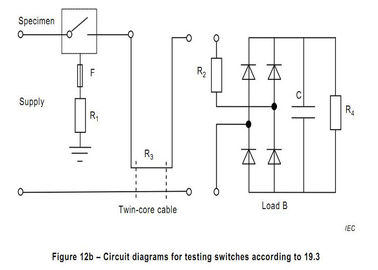

4. The self ballasted load lox has been preset with standard load conditions before shipment. As long as the test voltage is adjusted to 250V~, the operator presses the switch button with the same rated current as the switch to be tested, and its rated power, impulse waveform, Ipeak and I2t meet the corresponding requirements of the standard. The whole machine has 3 channels, only for switches with a rated voltage of 250V, of which two channels are 250W (IEC60669-1: 2017 clause 19.3), and the other channel is 400W (IEC60669-2-1: 2015 clause 19.109). This self ballasted load lox has calibration mode and calibration dedicated port, built-in 90 degree closing plate, connected with industrial control system, can output waveform, Ipeak current value and I2t energy value, fully meet the standard calibration requirements for equipment.



Technical parameters:



Item Content
Power Single phase with ground AC220V±5%/50Hz
Intelligent industrial control system

IPC: IPC-810E

Configuration software: E5

Oscilloscope: Tektronix or Agilent

Acquisition module: multiple

WDH=600*500*1450mm,

surface electrostatic powder spraying

Switch endurance tester

Station: 3 independent test stations

Control system: 7-inch color LCD touch screen +PLC+ servo motor, It has a communication interface, which is convenient for online use or communication with other devices (such as various loads), enabling data collection and statistics.

Test stroke: 0.1~100mm, can be preset

Test speed: 0.1~200mm/s, can be preset

On/Off time: the ‘on’ period shall be(25+5 0)% of the total cycle and the ‘off’ period (750 -5)%, 0.1~99.9 can be preset

Operating rate: 3 - 40 times can be set, associated with test stroke, test speed and on/off time setting

Alarm detection: Built-in detection circuit, when the product is detected to be unqualified, there is an audible and visual alarm, and there are text prompts:

1.When the switch is bonded, continuous conduction occurs;

2.When the electric shock burns out, it cannot be connected;

3.When the count arrives.

Load connection port: different test loads can be connected as needed, such as tungsten filament lamp load, externally ballasted lamp load, TV load, inductive load, capacitive load, motor load and so on.

Dimension:W1250mm×D650mm×H1150mm;

Weight:100kg.

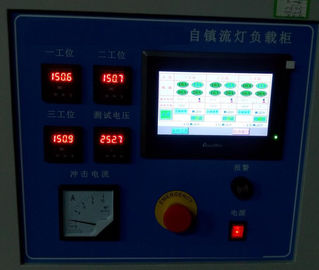

Self-ballasted lamp load box

Digital voltage value:Range 0 ~ 300V, precision 0.5,

Digital power value:0~9KW, precision 0.5

Output channel: 3 channel (two channels are 250W and the other channel is 400W)

Switch rated voltage: 250V ~, the input voltage is adjustable,All operating parameters are set at 250V~, including W, Ipeak, I2t, and inrush current waveforms.

Rated current 10A, 13A, 16A, 20A four optional

Each device provides a closing control device (touch screen select "calibration" function),each time is in the 90 degree angle conduction, this function can be used for initial equipment calibration and measurement verification.

With long on/ long off protection function, the protection time of 1 ~ 99S can be preset, shutdown alarm protection.

Use environment Temperature 5 ~ 40 °C, relative humidity 20 ~ 90% RH, atmospheric pressure 80 ~ 106kpa. No severe vibration, no electromagnetic interference, no dust, corrosive gas, good heat dissipation.
