IEC 60065 Clause12.1.6 Circulating Air Oven Aging Temperature Range From 10°C ~ 300°C

Brand Name:	HongCe
Model Number:	HH0812
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Temperature:

Digital Display

Temperature Range:

RT ±10°C～300°C

Temperature Fluctuation:

0.5%

Temperature Uniformity:

Heating Time:

60 Minutes

Air Exchange Capacity:

Up To 300 Times / Hour (adjustable)

Packaging Details:

plywood

Highlight:

audio measurement equipment

drop test equipment

Product Description

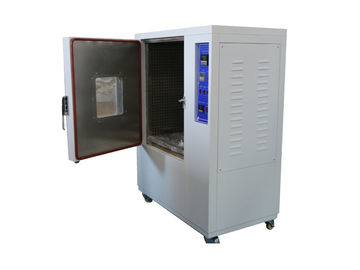

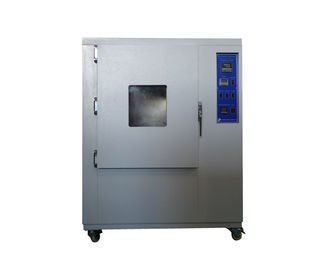

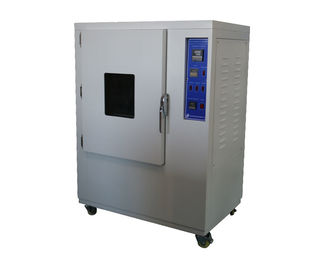

IEC 60065 clause12.1.6 Circulating Air Oven

Standard:

Conforms to IEC 60065 clause12.1.6, 12.7.3.2, IEC60950 clause 4.2.7 Annex A.

Application:

It is suitable for testing rubber, plastic, wire and cable insulation or coated rubber test pieces to compare the physical changes such as tensile strength and elongation of the test piece before aging and after aging. The machine adopts the hot air circulation mode to promote the aging of the test piece, the inner turntable, the inner box is tightly sealed, has the air box for the inner box, and has an over-temperature automatic cut-off protection device, which meets the requirements of UL-1581 test.

Parameters:

Temperature: digital display
Temperature range: RT ±10°C～300°C
Temperature fluctuation: 0.5% (calculated at the highest temperature)
Temperature uniformity: 1% (calculated at the highest temperature)
Heating time: 60 minutes
Studio size: 50 × 50 × 60cm
Air exchange capacity: up to 300 times / hour (adjustable)
Power: 7KW
Equip with turntable, speed 5 rev / min
Optional power-off retention, automatic power-on function
Stainless steel liner, shell cold-rolled steel plate electrostatic inkjet
Dimensions: 1160 × 1480 × 1050 (width × height × depth)
