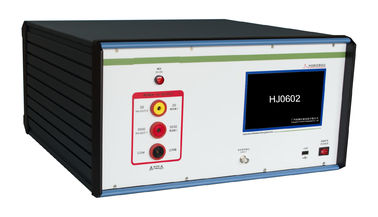

IEC60255-5 Household Impulse Voltage Tester Output Voltage Of 12kV (Max) ±5%

IEC60255-5 Household Impulse Voltage Tester Output Voltage Of 12kV (Max) ±5%
IEC60255-5 Household Impulse Voltage Tester Output Voltage Of 12kV (Max) ±5%

Large Image :  IEC60255-5 Household Impulse Voltage Tester Output Voltage Of 12kV (Max) ±5%

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HJ0602

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton box
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Detailed Product Description
Output Voltage: 12kV (Max) ±5% Impulse Wavefront Time: 1.2μs ±30%
Half Value Of After Wave Time: 50μs ±20% Capacitance: 0.8U
Impact Mode: Automatic Or Manual Impact Interval Time: 3-999s(3s Of Which Is The Inherent Charging Time Of The Device)
High Light:

audio measurement equipment

,

drop test equipment

IEC60255-5 Impulse Voltage Tester HJ0602



Application:

Impulse Voltage Tester HJ0602 is manufactured in accordance with the IEC60255-5 "Insulation Test of Electrical Relays" promulgated by the International Electrotechnical Commission (IEC), measuring the insulation coordination of relays and protective devices, and performing impulse voltage tests.



Feature:

7-inch touch LCD interface, rich in functions, easy to operate, easy to upgrade software

Intelligent programmable high voltage power supply, built-in high voltage over voltage, over current and short circuit protection

Output intelligent detection, voltage error, no output warning



Parameters:

Output voltage 12kV (Max) ±5%

Impulse wavefront time:
Impulse wavefront time:


Impulse wavefront time:



1.2μs ±30%
Half value of after wave time 50μs ±20%
Capacitance 0.8U
Output polarity Positive, negative, positive and negative cycle
Output resistance (optional) 2Ω,500Ω±10% 12Ω,500Ω±10%
Impact mode Automatic or manual
Impact cycles 1-9999
Impact interval time 3-999s(3s of which is the inherent charging time of the device)
Power source AC220±10%,50/60Hz
Dimension 470mm×260mm×500mm
Weight 30kg


Pulse generating unit equivalent circuit:

IEC60255-5 Household Impulse Voltage Tester Output Voltage Of 12kV (Max) ±5% 0



Output waveform definition Voltage wave

Leading edge time: T1=1.67T=1.2μs±30%

Half-peak time: T2=50μs±20%



IEC60255-5 Household Impulse Voltage Tester Output Voltage Of 12kV (Max) ±5% 1
