IPX1 IPX2 Vertical Drip Rain Test Equipment With Pillar Form Frames / PLC System

Brand Name:	HongCe
Model Number:	HC-IPX12B
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate (cost additional)

Raindrop Area:

1000*1000mm

Drip Drop Heigh:

1000-1800mm

Dripping Rate (Water Flow):

1-5mm/min(±0.5mm/min)

Rack Material:

Formed Aluminum

Drip Hole Diameter:

Φ0.4mm

Distance Between Holes:

20mm

Packaging Details:

plywood

Highlight:

waterproof tester

material testing equipment

Product Description

IPX12 Vertical Drip Rain Testing – Pillar Form Frames

Standard

IEC60529 degree of protection provided by enclosures (IP Code) of the IPX1 and IPX2, IEC60884-1, IEC60335-1, IEC60598-1.

Application

It is used for the testing of IPX1 and IPX2. Mainly used in lighting, household appliances, industrial electrical, communication cabinets, auto parts, mobile intelligence and other fields.

Features

1. The outer frame of the test machine is made of high-quality aluminum alloy, and the turntable is made of SUS304 stainless steel, which has high corrosion resistance.

2. 7-inch color touch screen + Panasonic PLC system, sample on and off can also be controlled by the system, and added remote control function.

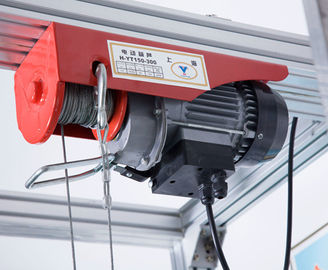

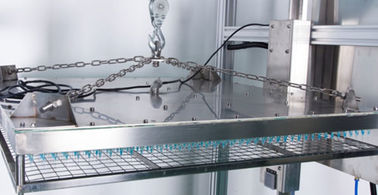

3. The electric hoist is small in size and has a large bearing capacity. The drip tank was adjustable, The use of advanced automated lifting technology eliminates the hassle of manually placing samples.

4. The rack was removable.

Parameters:

Model	HC-IPX12B-800	HC-IPX12B-1000
Drip test area	800x800mm	1000x1000mm
Outer dimension	1700x1300x2400mm
Drip hole diameter	Φ0.4mm
Distance between holes	20mm
Rotary table	Diameter:Φ600mm/800mm；Rotating speed1r/min. Load bearing≤50kg
Table tilting angle	0/15° adjustable
Dripping rate (Water flow)	1-5mm/min(±0.5mm/min)
Flow regulation mode	Manual regulation
Dripping tank elevation	1000-1800mm
Turntable elevation	Immovable (fixed)
Input power	Single-phase AC220V,50Hz (customizable),1.0kW
Protector	Leakage protection, short circuit protection, water shortage protection
