HH0803 Ingress Protection Test Equipment 121-Hole Precision Spray 10L/min Water Flow 150Kpa Pressure IPX3 and IPX4 Compliance Tester

Name: HH0803 Ingress Protection Test Equipment 121-Hole Precision Spray 10L/min Water Flow 150Kpa Pressure IPX3 and IPX4 Compliance Tester
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HH0803
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HH0803
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Test Object:

Enclosures

Standard:

IEC 60529, EN 60529

Test:

Protection Against Water

External Diameter:

Ф102mm

Spherical Diameter:

SФ75.5mm

Holes:

121 Holes Of Ф0.5mm

Water Flow:

10L/min

Pressure Gauge:

50~150Kpa, Range Of Pressure Gauge 0~0.25Mpa

Packaging Details:

plywood

Highlight:

10L/min Ingress Protection Test Equipment

150Kpa Ingress Protection Test Equipment

Ingress Protection Test Machine

Product Description

HH0803 Ingress Protection Test Equipment | 121-Hole Precision Spray |

10L/min Water Flow | 150Kpa Pressure | IPX3 and IPX4 Compliance Tester

Product introduction

HH0803 anti-spray and water handheld test device is a high-precision IP protection grade test device designed for electronic equipment. It has 121 0.5mm water spray holes, provides 10L/min water flow and up to 150kpa pressure to simulate the spray and splash conditions in the real environment, ensuring strict testing of the waterproof function of the shell. This device not only meets the international protection standards IPX3 and IPX4, but also has a sturdy and durable stainless steel material and humanized operation design. Whether it is product testing in the R&D stage or quality control in the production process, HH0803 can provide you with accurate and reliable data support.

International reference standards
• IEC 60529: Protection level standard developed by the International Electrotechnical Commission, including water and splash test requirements for IPX3 and IPX4 levels.
• IEC 60884-1: Safety of household and similar electrical appliances Part 1: General requirements.
• IEC 60335-1: General requirements for safety of household and similar electrical appliances.
• IEC 60598-1: Luminaires Part 1: General requirements and tests.

Test sample: The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.).

Feature:

Simulate water spraying and splashing in real environment to ensure the accuracy of test results. Made of high-quality stainless steel, it is corrosion-resistant to ensure long-term stable operation of the equipment. Easy to operate, easy to use, and can be operated proficiently without complex training. Optimized motor drive system improves test efficiency and reduces energy consumption. It has multiple protection functions such as overload, overheating, short circuit, etc. to ensure the safety of equipment and operators.

Technical parameters:

Model	HH0803
Water supply	Water flow rate＞10L/min±5% clean water without inclusion.
Control and operation	valve, hand held
Nozzle external diameter	Ф102mm
Nozzle spherical diameter	SФ75.5mm

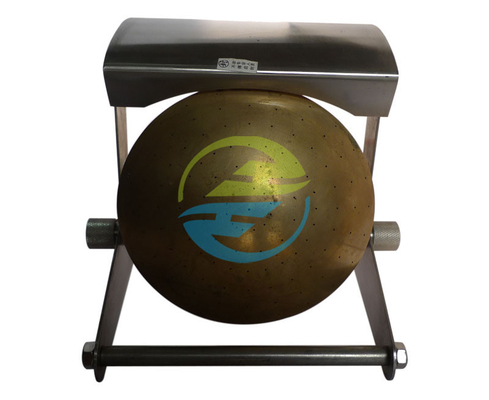

Nozzle holes	121 holes of Ф0.5mm 1 hole at the centre 1 inner circles of 12 holes at 30° pitch 4 outer circles of 24 holes at 15° pitch
Nozzle material	Brass
Moving shield material	Aluminum
Water flow	10L/min±5%, Flow meter is adjustable
Pressure gauge	50~150Kpa, Range of pressure gauge 0~0.25Mpa
Baffle	Removable
Site requirements	Dedicated IP waterproof test room, The ground should be flat with illumination With good function of inflow and drainage.
Testing time	Manual control, at least 5min

Click here to get the user manual HH0803.pdf for your reference .

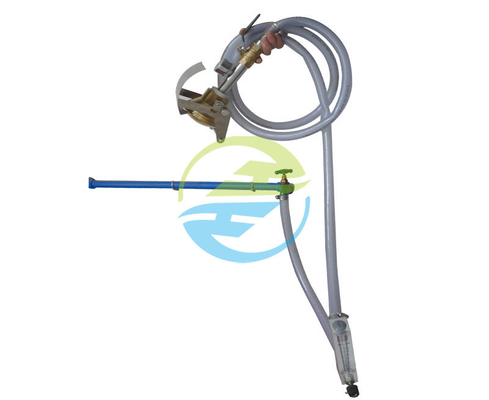

HH0803 Ingress Protection Test Equipment 121-Hole Precision Spray 10L/min Water Flow 150Kpa Pressure IPX3 and IPX4 Compliance Tester 0

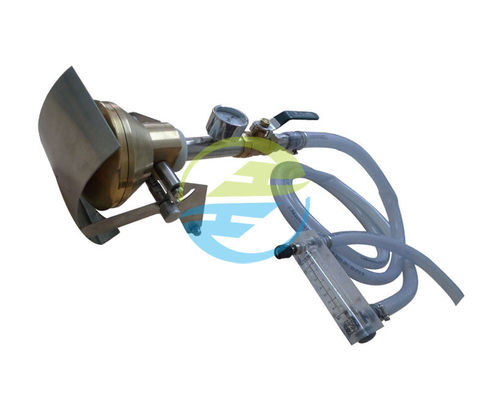

HH0803 Ingress Protection Test Equipment 121-Hole Precision Spray 10L/min Water Flow 150Kpa Pressure IPX3 and IPX4 Compliance Tester 1
