50mm Stainless Steel Ball Test Probe with 50N Force for Precision IEC 61032 IP Testing Equipment HT-I01 Model

50mm Stainless Steel Ball Test Probe with 50N Force for Precision IEC 61032 IP Testing Equipment HT-I01 Model

50mm Stainless Steel Ball Test Probe with 50N Force for Precision IEC 61032 IP Testing Equipment HT-I01 Model

Brand Name: HongCe
Model Number: HT-I01
MOQ: 1 set
Price: Negotiatable
Payment Terms: T/T
Supply Ability: 100 sets/ month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Packaging Details:
Aluminum Box
Highlight:

50mm Stainless Steel Ball Test Probe

,

50N Force IP Testing Equipment

,

HT-I01 Model IEC 61032 Probe

Product Description
50mm Stainless Steel Ball & Nylon Test Finger Probe – Precision IEC 61032 / EN 60529 IP Testing Equipment
In the field of safety testing, every detail matters to user safety and equipment reliability. Our HT-I01 test probe, meticulously crafted with a sturdy nylon handle and a high-precision 50mm stainless steel ball, is designed to accurately replicate the test scenarios defined in international standards.
Key Features
  • Precision-engineered for IEC 61032 / EN 60529 IP testing compliance
  • Sturdy nylon handle with 50mm stainless steel ball probe
  • Factory-calibrated for consistent, reliable test results
  • Essential tool for electrical safety and mechanical hazard assessment
  • Supports multiple international certification processes
Technical Parameters
Parameters/Model HT-I01 HT-I01T
Name Test probe A Test probe A with force
1 SФ50+0.05 0 SФ50+0.05 0
2 Ф45±0.2 Ф45±0.2
3 Ф10 Ф10
4 4 4
5 100 100
6 ---- With force of 50N
7 IEC61032 IEC60529
Product Applications
This test probe is an essential tool for the safety design and quality testing of various electronic and electrical products:
  • Electrical Appliance Safety Testing: Inspects electric shock protection for household appliances, IT equipment, and audio/video devices
  • Machinery Safety Assessment: Evaluates industrial equipment housings for hazardous moving part access
  • Compliance Certification: Supports testing for CE, UL, CCC, and GS certifications
Test Objects
  • Household and commercial electrical appliance housings
  • Information technology equipment (computers, servers)
  • Audio and video electronic equipment
  • Lamp and lighting housings
  • Industrial control equipment and machine tool housings
  • Toys and consumer electronics
Product Images

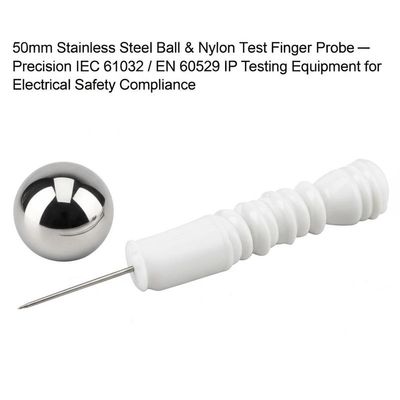

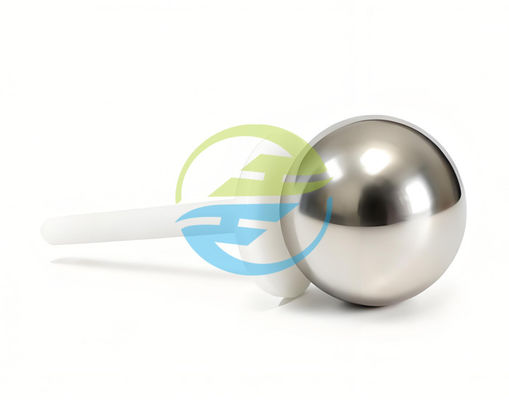

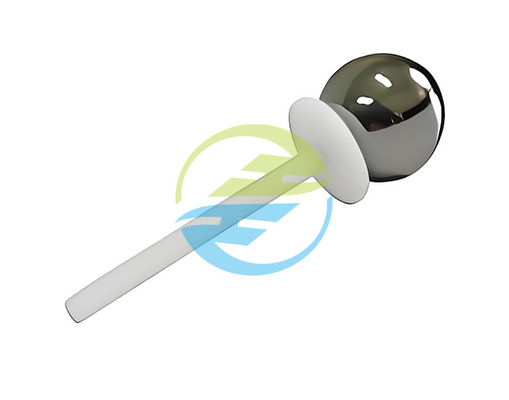

50mm Stainless Steel Ball Test Probe with 50N Force for Precision IEC 61032 IP Testing Equipment HT-I01 Model 0 50mm Stainless Steel Ball Test Probe with 50N Force for Precision IEC 61032 IP Testing Equipment HT-I01 Model 1
