DIN-VDE0620-1 Plug Socket Tester / German Standard Plug And Socket Measuring Gauge

Brand Name:	HongCe
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate (cost additional)

Standard:

DIN-VDE0620-1

Material:

DC53,HRC58

Type:

Precision Gauge

Measure Range:

German Standard Plug And Socket

Packaging Details:

Carton box

Highlight:

DIN-VDE0620-1 Plug Socket Tester

HRC58 Plug Socket Tester

DC53 Plug Socket Tester

Product Description

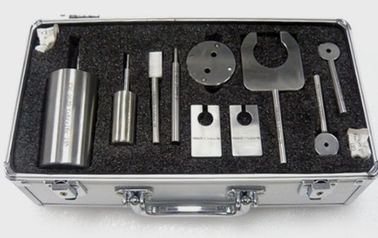

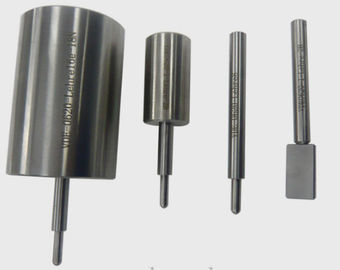

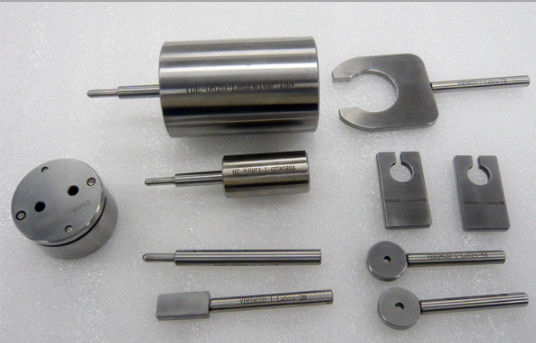

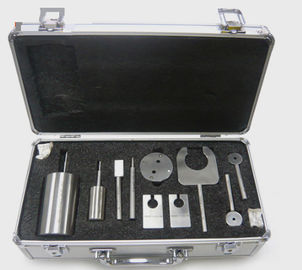

DIN-VDE0620-1 Plug And Socket Gauge For Measuring German Standard Plug And Socket

Product information:

The gauges conforms to the standard of DIN-VDE0620-1.It is measuring German standard plug and socket.

Figure number	Project name	Number
DIN-VDE0620-1-Lehre1	Socket R gauge (5.0,5.8,6.0)	3
DIN-VDE0620-1-lehre2	Minimum opening width and minimum pull out force of contact jack	2
DIN-VDE0620-1-Lehre3	Bipolar plug force	1
DIN-VDE0620-1-Lehre4	Bipolar plug with earthing contact insertion flanking force	1
DIN-VDE0620-1-Lehre5	To test the first time contact closure interval gauge	1 sets of /4 parts
DIN-VDE0620-1-Lehre6	Pin diameter	1 sets of /4 parts
DIN-VDE0620-1-Lehre7	Pin distance	1 /2 combination
DIN-VDE0620-1-Lehre8	The maximum opening width of the contact jack	1
DIN-VDE0620-1-Lehre9	Interchangeability test plug gauge	1
DIN-VDE0620-1-Lehre10-A	The impossibility of the contact of the single pole contact hole A	1
DIN-VDE0620-1-Lehre10-B	Unipolar contact hole contacts not the possibility of B	1
DIN-VDE0620-1-Lehre11	No bipolar plug ground contact can not be inserted	1
DIN-VDE0620-1-Lehre12	The possibility of unipolar insertion plug (including 250 grams and 1000 grams of weight and the positioning rack)	1 sets of /4 parts
DIN-VDE0620-1-Lehre13	After normal operation test of live parts check protection inside the door can not touch the probe	1 sets
DIN-VDE0620-1-Lehre14	On both sides of the ground test	1
DIN-VDE0620-1-Lehre15	Live parts check protection inside the door and strengthen the protection of live parts socket can not touch with the probe	1
DIN-VDE0620-1Fig15	Gauge	1
DIN-VDE0620-1-Lehre16a	The maximum pullout force plug (16a)	1
DIN-VDE0620-1-Lehre16d	The maximum pullout force plug (16d)	1
DIN-VDE0620-1-Lehre17	Lehre17	1
DIN-VDE0620-1-Lehre18	Lehre18gauge	1
DIN-VDE0620-1-EN50075	Interchangeability test plug gauge	1
DIN-VDE0620-1-49440-L1	49440-L1- on the IPX4 test socket	1
DIN-VDE0620-1-49440-L2	49440-L2- on the IPX4 test socket	1
DIN-VDE0620-1-49440-L1-L2	Bipolar grounded plug diameter gauge and test equipment	1 sets of /3 parts
DIN-VDE0620-1-Bild15	Test pressure device	1 sets
DIN-VDE0620-1-Bild14	Bild14 gauge	1 sets
DIN-VDE0620-1-Bild43	Bild43 gauge	1 sets of /2 parts
