IEC 60335-2-24 Home Appliance Testing Equipment Gas Pressure Test Bench For Compression-type Appliances

Brand Name:	HongCe
Model Number:	HJ1302
MOQ:	1 set
Price:	Negotiation
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Standard:

IEC 60335-2-24 Clause 22.7

Test Pressure:

0~3Mpa, Adjustable

Control Accuracy:

0.5%

Pressurize Flow:

86L/min

Driving Pressure:

0.3~0.8Mpa

Packaging Details:

Plywood

Highlight:

material test machine

compression test equipment

Product Description

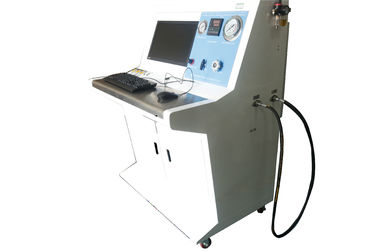

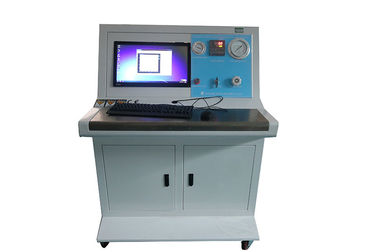

IEC 60335-2-24 Home Appliance Testing Equipment Gas Pressure Test Bench For Compression-type Appliances

Standard: IEC 60335-2-24 Household and similar electrical appliances – Safety – Part 2-24: Particular requirements for refrigerating appliances, ice-cream appliances and ice-makersclause clause 22.7.

Features:

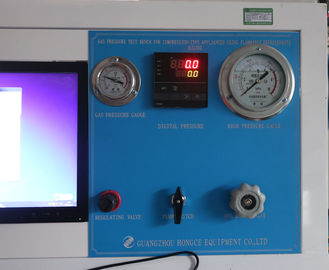

This computer control air seal pressure test device, can complete the low and high pressure testing. Computer smart system detect and acquisition high pressure and low pressure value respectly, and can control the pressure on low pressure end and high pressure end respectly.

Core booster equipment adopt smart pressure control system, can adjust and control output pressure freely.
Advanced technology, reasonable structure design, with small size, light weight, beautiful appearance features.
All pressure parts using international brand standard parts, no welding connection, easy disassembly, high security, long lifespan, easy maintenance.
The device is driven by compressed air, use of high-quality high-pressure pump, the low pressure and high pressure detecting can be completed at the same time.

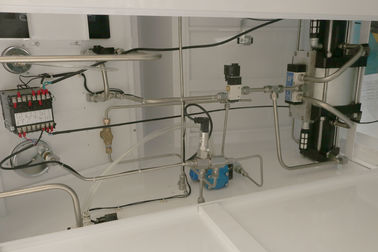

Equipped with low pressure compressor and B10 high pressure booster pump, can realize the whole pressure range test and control.
Test pressure range 0~3Mpa, select required pressure according to actual test requirement.
Computer system can set and control test pressure, real time displaying pressure curve. Can print test report when test completed.
When test pressure reached, automatic stop pressurization and entering pressure maintaining and start timing device.
Smart pressure control system, can complete the real-time pressure acquisition, and data analysis and recording.
Pressure maintaining period, test system automatic timing, alarm when maintaining period complete.
Test procedure programmable, reach test pressure automatic stop pressurization.
When test completed, can print CN-EN test report, same test data in excel form.

Principle	According to the different pressure of test sample, smart test system complete the running, air detection and related pressure detection work.
Introduction	Test pressure	0~3Mpa, adjustable
	Control accuracy	Upper limit: +3%; Lower limited: -1%
	Test medium	Compressed air
	Pressure control	System control or manual control
	Operation	System control or manual control
	Sample qty	1 channel, control test pressure and test time
	Sample installation	Connection
Composition	Circulating system, pressure control system, workpiece mounting device, manual control device
Application	Pressure detection, sealing test

Specifications

Test medium	Compressed air
Test pressure	0~3Mpa
Pressurize flow	86L/min
Driving pressure	0.3~0.8Mpa
Driving flow	0.3~1CBM/min
Time display	Computer display
Pressure curve display	Data acquisition software real time display, can zoom in and out
Report print	Test report can be printed and test data can be saved
Test data storage	Can save reports and excel form, the data collected each time can be saved
Display accuracy	0.1Mpa
Control accuracy	0.5%

Schematic diagram
