Electrical Water Pressure Testing Equipment / Apparatus With 450ml Container Bottle

Brand Name:	HongCe
Model Number:	ZSY-1
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Power Supply:

AC 230V 50Hz

Power:

3KW

Test Pressure:

0.5~20MPa±0.5MPa

Test Completion Reminder Time:

3min

Test Time:

1-99hour

Container Bottle:

450ml

Dimension (LXWXH):

1200mmX450mmX1500mm

Packaging Details:

Plywood

Highlight:

electrical appliance tester

portable appliance testing equipment

Product Description

IEC 60335-1 Clause 22.32 Electrical Appliance Tester Water Pressure Test Apparatus With 450ml Container Bottle

Product Introduction

This test apparatus is design and manufactured according to standard IEC 60335-1 clause 22.32, GB 4706.1 clause 22.32. It is use to determine if ceramic material is tightly sintered, consists of two parts: test container and pressure boosting device magenta.

The ceramic material is broken into pieces that are immersed in a solution containing 1 g of fuchsine in each 100 g of methylated spirit. The solution is maintained at a pressure not less than 15 MPa for a period so that the product of the test duration in hours and the test pressure in megapascals is approximately 180.

The pieces are removed from the solution, rinsed, dried and broken into smaller pieces.

The freshly broken surfaces are examined and shall not show any trace of dye visible to the naked eye.

Parameters

Item Name	Parameters
Power supply	AC 230V 50Hz
Power	3KW
Test pressure	0.5~20MPa±0.5MPa
Test completion reminder time	3min
Test time	1-99hour
Container bottle	450ml
Pressure relief way	Automatic relief
Dimension (LXWXH)	1200mmX450mmX1500mm

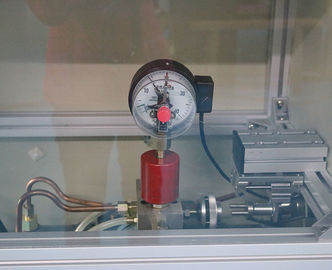

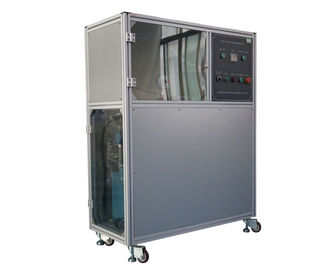

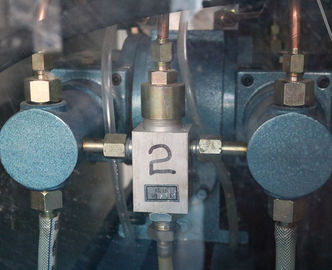

Picture for reference

Electrical Water Pressure Testing Equipment / Apparatus With 450ml Container Bottle 0
