0 - 5 Bar Water Ingress Protection Test Equipment IPX8 Test Continuous Immersion Tank

Name: 0 - 5 Bar Water Ingress Protection Test Equipment IPX8 Test Continuous Immersion Tank
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HH0806
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HH0806
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Test Object:

Enclosures

Standard:

IEC 60529, EN 60529

Test:

Protection Against Water

Volume:

Diameter 0.8 Meter, Height 1 Meter

Pressure Adjustment Range:

0 ~ 5bar

Pressure System:

Stainless Steel Pump + Frequency Converter

Testing Time:

0-99min

Main Structure:

Stainless Steel Tank

Packaging Details:

plywood

Highlight:

environmental test chamber

material testing equipment

Product Description

IPX8 Water Tightness Pressure Tester HH0806

Description:

Assessment of enclosures and sealing element whether can ensure good performance of equipment and components after the water test or during the test.

Confirm to standards:

IEC 60529 IPX8;

EN 60529 IPX8;

IEC 60884-1;

IEC 60598-1;

IEC 60335-1 and so on.

Test sample: Products with IPX8 degree waterproof test

Feature:

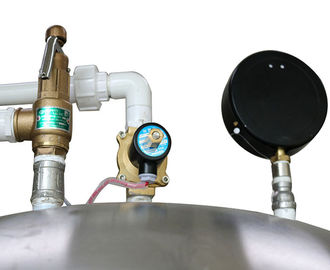

1. Entire tank adopts SUS304# stainless steel high accuracy integrated forming, ensure it will not rust and water-tight after long time use, adjust the test pressure according to the high precision pressure regulating valve. Pressure regulating valve with pressure stabilizing function, it can keep stable test pressure all the time after the pressure has been adjusted.

2.The pot cover is rotated and lifted by the screw thread, it can rotate and move away from the hole after lifting. (when pressure is greater than 50m depth test, must use special flange lock to lock cover)

3.The whole tank surface blasting treatment, smooth and beautiful.

Technical parameters:

Pressure vessel	Stainless steel tank, diameter 0.8 meter, height 1 meter
Pressure adjustment range	0 ~ 5bar (can be customized)
Pressure system	Stainless steel pump + frequency converter
Pressure gauge accuracy	0.25 degree, range: 6bar
Testing time	0-99min
Maximum limit pressure	6 bar
Pressure protection	Pressure switch protection
Connection	Connect to the water supply equipment by 3/4 high pressure steel wire hose connection

0 - 5 Bar Water Ingress Protection Test Equipment IPX8 Test Continuous Immersion Tank 0
