Cord Reels Endurance Testing Equipment Automatic with Test speed 30 cycles / min

Name: Cord Reels Endurance Testing Equipment Automatic with Test speed 30 cycles / min
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HJ0605
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HJ0605
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Test Object:

Automatic Cord Reels

Standard:

IEC 60335-1

Test:

Endurance Test

Stations:

Power Supply:

AC 220V 50Hz

Test Speed:

30 Cycles / Min

Test Cycles:

0~9999 Times

Drive Mode:

Pneumatic

Packaging Details:

plywood

Highlight:

electrical appliance tester

portable appliance testing equipment

Product Description

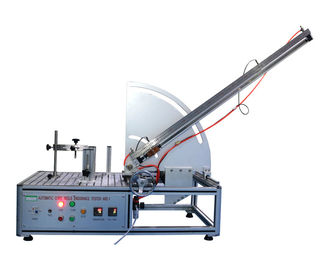

Automatic Cord Reels Endurance Testing Equipment HJ0605

Description:

This device is used to check the automatic cord reels shall be constructed so that they do not cause

– undue abrasion or damage to the sheath of the flexible cord;

– breakage of conductor strands;

– undue wear of contacts.

According to the standard Clause 22.16 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements.

Test sample: Automatic cord reels

Feature: The device adopts a multi-functional fixture, large work surface, can test cord reels up to 300cm, test speed (5-30 times / min) is adjustable, and it is suitable for most test electrical products.

Technical parameters:

Power supply	AC 220V 50Hz
Gas Source	Compressed air 5 ~ 7kg / cm²
Test Speed	30 cycles / min (or at the maximum rate allowed by the construction of the cord reel if this is less)
Test Cycles	0~9999 times, the test device will stop working automatically when the preset test cycles are finished
Drive Mode	Pneumatic

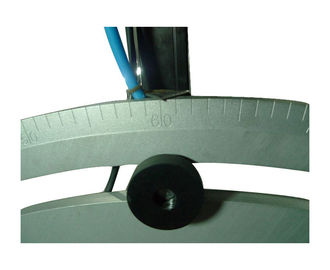

Withdrawable Angle	30~70°, can be preset
Fixture	Quick clamping fixtures, easy for clamping the test sample
Withdrawable Stroke	Maximum 1000mm, can be adjusted
Test	Endurance test
Reference standard	UL817 clause 96.4-96.5 Flexing test, clause 99.1-99.2 Abrupt Pull Test, clause 100.1-100.3 Jacket retention test
