IEC60335-2-80 Ceiling Fans Construction Tester Test Pin Figure 102 Made Of Stainless Steel

Brand Name:	HongCe
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Product Name:

Test Pin

Standard:

IEC60335-2-80

Application:

Ceiling Fans

Material:

Stainless Steel

Function:

Simulates Wear On The Bolt

Length Of B:

38mm

Length Of C:

38mm

Diameter A:

12.7mm

Packaging Details:

Carton Box

Highlight:

Ceiling Fans Construction Tester

IEC 60335-2-80 Ceiling Fans Construction Tester

Stainless Steel Ceiling Fans Construction Tester

Product Description

IEC60335-2-80 Fans Construction Tester - Test Pin of Figure 102 - Made of Stainless Steel

Standard:

Conforms to IEC 60335-2-80 Clause 22, Test pin of Figure 102

Application: It is used for construction testing of ceiling fan.

Test sample: Ceiling fans.

Feature: The ceiling fan shall incorporate a device that disconnects the fan from the supply before the suspension system fails. An example of this construction is shown in Figure 1 01 .
Compliance is checked by the following test.
The bolt that connects the down rod to the motor is replaced with the specially prepared test pin shown in Figure 102 that simulates wear on the bolt. The pin is fully inserted so that it connects the down rod to the motor.
The fan is supplied at rated voltage and operated at maximum speed. The pin is then partially withdrawn so that the motor is connected to the down rod by that part of the pin having diameter b.
The supply to the ceiling fan shall be automatically disconnected and the fan shall not be capable of operation without replacing the worn bolt.

Parameters:

(The following dimensions are customized according to the customer's samples. Please refer to the standard and standard figure for specific requirements)

Length B	38mm
Length C	38mm
Diameter a	12.7mm
Diameter b	6.35mm

Standard figure:

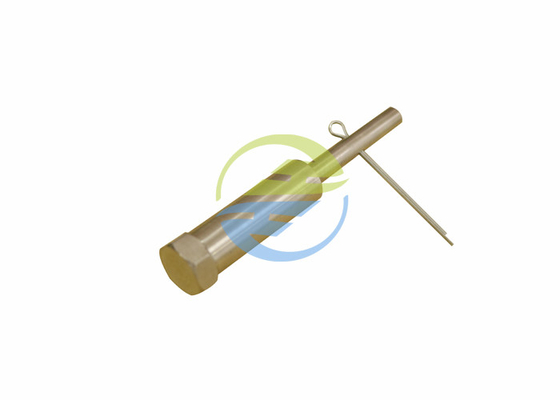

IEC60335-2-80 Ceiling Fans Construction Tester Test Pin Figure 102 Made Of Stainless Steel 0

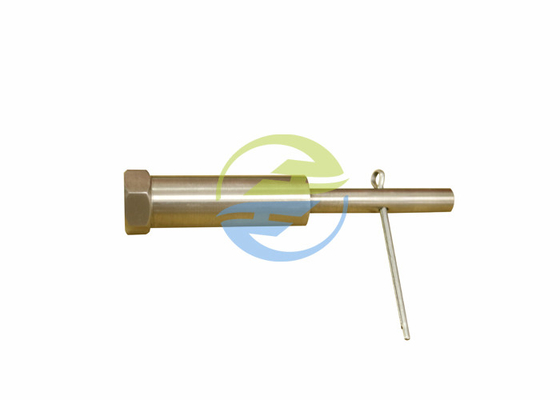

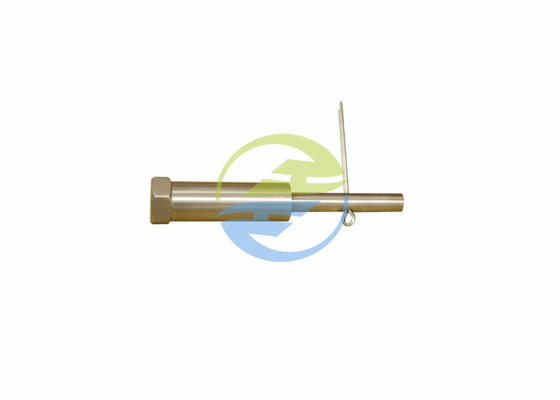

Picture for reference:
