Electrical Appliance Tester
Created with Pixso.

IEC60335-2-23 Wooden Sphere 200mm Diameter Wire Frame For Hairdryers

IEC60335-2-23 Wooden Sphere 200mm Diameter Wire Frame For Hairdryers

Brand Name: HongCe
MOQ: 1 set
Price: Negotiatable
Payment Terms: T/T
Supply Ability: 20 set per month
Detail Information
Place of Origin:
China
Certification:
Third part calibration certificate(cost additional)
Product Name:
Wooden Sphere And Wire Frame
Warranty:
1 Year
Standard:
IEC60335-2-23
Application:
Hairdryers
Color:
Black
Function:
Normal Operation Test
Wooden Sphere Diameter:
200mm
Wire Diameter:
1.5mm
Packaging Details:
Carton Box
Highlight:

IEC 60335-2-23 Wooden Sphere

,

200mm Diameter Wooden Sphere

,

Wire Frame Wooden Sphere

Product Description

IEC60335-2-23 Wooden Sphere 200mm In Diameter And Wire Frame For Hairdryers



Standard:

IEC 60335-2-23 clause 3.1.9 and Fig.101



Application: It is used for normal operation testing of helmet-type hairdryers and hairdryers having a flexible hood attachment.

Test sample: Hairdryers.



Parameters:

Item Name Parameter
Wooden Sphere Diameter 200mm
Material Wood
Color Dull black
Wire Frame Wire diameter 1.5±0.5mm
Number of wires 32
Spacing between wires Equally space
Large circle diameter 200mm
Small circle diameter 18mm
Material Steel




Standard figure:

IEC60335-2-23 Wooden Sphere 200mm Diameter Wire Frame For Hairdryers 0
IEC60335-2-23 Wooden Sphere 200mm Diameter Wire Frame For Hairdryers 1

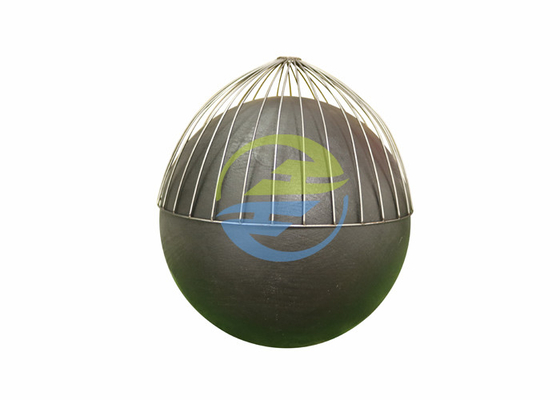

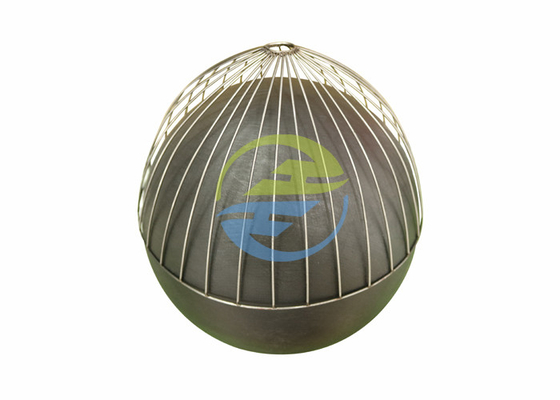

Picture for reference:

IEC60335-2-23 Wooden Sphere 200mm Diameter Wire Frame For Hairdryers 2
