IEC60335-2-2 Current - Carrying Hoses Torsion Resistance Tester 10r/Min Bending Speed

IEC60335-2-2 Current - Carrying Hoses Torsion Resistance Tester 10r/Min Bending Speed

Brand Name:	HongCe
Model Number:	HJ0617
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Warranty:

1 Year

Product Name:

Current-Carrying Hoses Torsion Resistance Tester

Usage:

Torsion Resistance Test

Test Sample:

Current-Carrying Hoses

Standard:

IEC60335-2-2

Working Station:

1 Station

Bending Speed:

10r/min, Can Be Preset

Positive / Inverse Times:

5 Times

Packaging Details:

plywood

Highlight:

10r / Min Hoses Torsion Resistance Tester

IEC 60335-2-2 Hoses Torsion Resistance Tester

1 Station Hoses Torsion Resistance Tester

Product Description

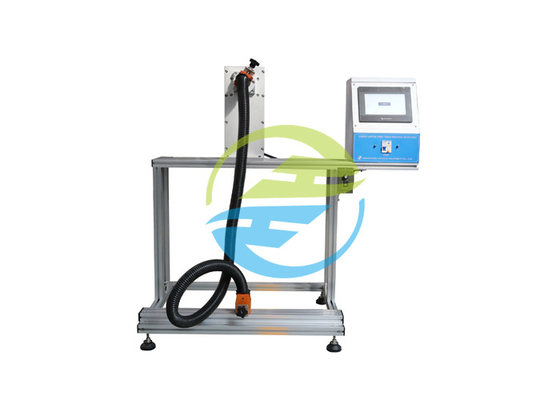

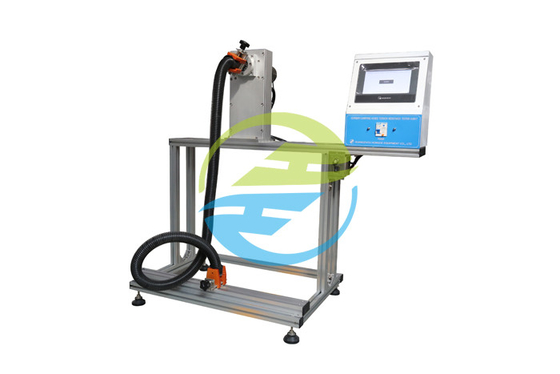

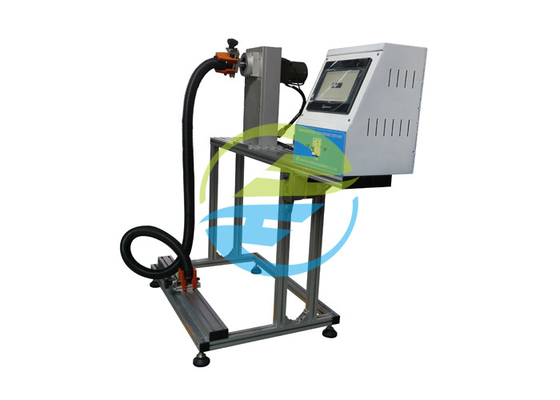

IEC60335-2-2 Current-Carrying Hoses Torsion Resistance Tester 10r/Min Bending Speed

Standard: This device meets the standard of IEC60335-2-2, clause 21.104. Electrical Appliance Tester

Application: Suitable for the Current-carrying hoses torsion resistance tester.

Test sample: Vacuum cleaner hoses, water suction type cleaning apparatus tube, washing machine water pipe.

Feature: Adopt bending machine mode, use PLC control, touch screen operation, torsion times and torsion speed can be preset, it can automatic reverse and automatic shutdown when reaching to the test times. Electrical Appliance Tester

One end of the hose is held in a horizontal position with the remainder of the hose freely suspended. The free end is rotated in cycles, each cycle consisting of five turns in one direction and five turns in the opposite direction, at a rate of 10 turns per minute. The test is carried out for 2000 cycles. After the test, the hose shall withstand the electric strength test of 16.3 and shall not be damaged to such an extent that compliance with this standard is impaired. Electrical Appliance Tester

Parameters:

Power supply	AC220V 50Hz.
Control and operation	PLC intelligent electrical control, touch screen operation
Working station	1 station, multi-station can be customizable
Bending speed	10r/min, can be preset
Positive / inverse times	5 times
Test cycle	0-999999, can be preset,default 2000 times
Size and weight	1000×500×1000mm,100kg

Standard figure:

IEC60335-2-2 Current - Carrying Hoses Torsion Resistance Tester 10r/Min Bending Speed 0 Electrical Appliance Tester
