Clause 15.4.3 B Torque Wrench Audio Video Test Equipment For Detecting Screw Thread Fastener Accuracy ≤ ±3%

Brand Name:	HongCe
Model Number:	SDB
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Feature:

Fixed Value Of Torque Measurement

Accuracy:

≤±3%

Function:

Peak Holding Function

Packaging Details:

Carton box

Highlight:

audio measurement equipment

drop test equipment

Product Description

IEC 60065:2014 clause 15.4.3 b Torque Wrench

Standard:

Conforms to IEC 60065:2014 clause 15.4.3 b) and IEC60598.1, IEC60950.1

Product information:

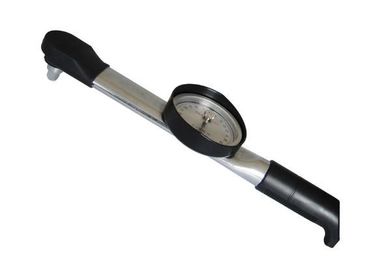

SDB Series Analog Torque Wrench, a torque detecting tool, is designed for detecting screw thread fastener. It can be widely used in aerospace, defense industry, heavy equipment, ships, railway, mining, engineering machinery, electrical and mechanical instruments, automobile manufacturing and maintenance centers etc.

Feature:

Easy and intuitionistic to read;

Bidirectional to test torque;

Peak holding function;

Fixed value of torque measurement

Parameters:

Model

SDB-1.5

SDB-3

SDB-6

SDB-10

SDB-20

SDB-50

SDB-100

SDB-200

SDB-500

Capacity N.m

0.15~1.5

0.3~3

0.6~6

1~10

2~20

5~50

10~100

20~200

50~500

Min scale N.m

0.015

0.03

0.06

0.1

0.2

0.5

accuracy

≤±3%

Drive gib mm

6.3×6.3

9.5×9.5

12.7×12.7

19×19

Dimension mm

200

310

350

420

600

1100

Weight

0.4kg

0.52kg

0.55kg

0.62kg

1kg

4kg
