|Place of Origin:||China|
|Certification:||Third part calibration certificate(cost additional)|
|Minimum Order Quantity:||1 set|
|Delivery Time:||20 working days|
|Supply Ability:||20 set per month|
|Test Object:||Wires, Cables, Rubber (plastic, Leather) Insulation Layer And Sheath, As Well As Other Polymer Materials.||Standard:||IEC 60335-1|
|Test:||Aging Test||Maximum Operating Pressure:||2.5MP|
|Secure Burst Pressure:||2.7～3.3MP||Temperature-controlled Range:||Room Temperature～200℃|
|Inside Chamber Dimensions:||Diameter 123 × Height 337mm||Outer Chamber Dimensions:||560mm × 420mm × 670mm|
laboratory test equipment

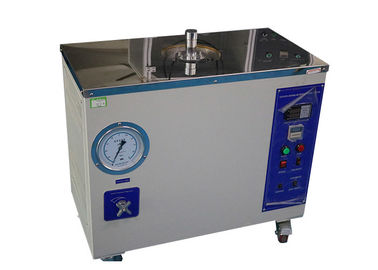

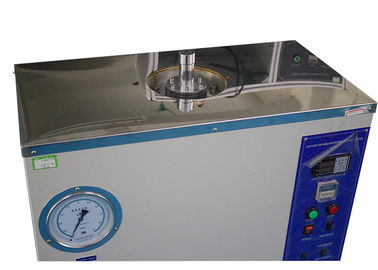

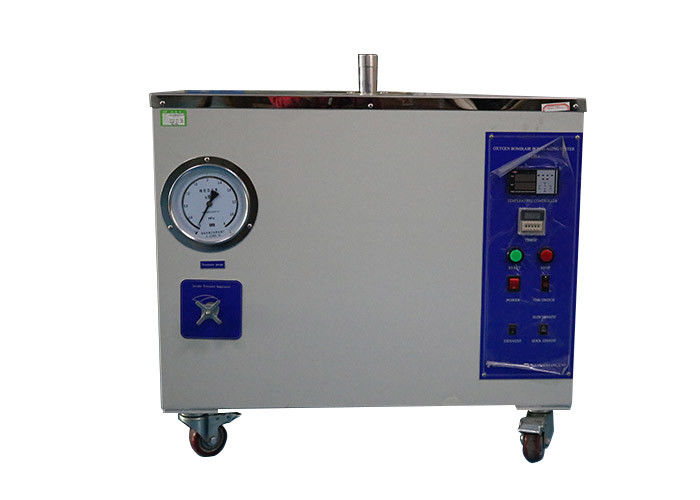

IEC60811 - 1 - 2 Oxygen Bomb Aging Tester IEC Test Equipment For Wire And Cable
This oxygen bomb aging tester, also called air bomb aging tester, is suitable for the aging test in the oxygen and compressed air to the wire and cable, rubber ( plastic, leather ) insulation and sheathing, as well as other polymer materials under the action of a predetermined pressure and temperature.
The oxygen bomb aging tester is with high accuracy temperature control, the operation is easy, and the appearance is attractive, and it composes of stainless steel tank container, electrical control cabinet.
|Power supply||AC 220V 50Hz|
|Maximum Operating Pressure||2.5MP|
|Secure Burst Pressure||2.7～3.3MP|
|Temperature-controlled range||room temperature～200℃|
|Outer Chamber Dimensions||560mm × 420mm × 670mm|
|Inside Chamber Dimensions||Diameter 123 × Height 337mm|
|Inside Chamber Volume||4000cm3|
|Temperature Alarm||0～200℃ Adjustable|
|Temperature Control||Intelligent control|
|Temperature Display||Thermometer display|
|Material||Inside chamber is made of stainless steel and outer chamber is made of electrostatic spraying steel plate|
