Intelligent Ingress Protection Test Equipment UV Aging Stainless Steel Chamber RT+10℃～70℃

Name: Intelligent Ingress Protection Test Equipment UV Aging Stainless Steel Chamber RT+10℃～70℃
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: H-UV-A
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	H-UV-A
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Temperature Range:

RT+10℃～70℃

Humidity Range:

≥75%RH

Standard Test Sample Size:

75×150mm 21 Pieces

Conform To Standard:

ISO 11507 ASTMD 4329

Packaging Details:

Plywood

Highlight:

environmental test chamber

material testing equipment

Product Description

UV Weathering Tester H-UV-A(Intelligent)

Application:UV light is responsible for almost all photodegradation of durable materials exposed outdoors. The UV tester's fluorescent lamps simulate the critical short-wave UV and realistically reproduce the physical property damage caused by sunlight. Types of damage include color change, gloss loss, chalking, cracking, crazing, hazing, blistering, embrittlement, strength loss and oxidation.

Structure: The structure of UV weathering test chamber is a stainless steel chamber, install two rows with four tubes on each row inside the chamber, to simulate the UV light, it is used to simulate the moist environment by raising the temperature in inner chamber through a humidifying system, then to simulate rain with the spray system, three different environments cycle alternately by the program setting.

Technical parameters:

1．Model:H-UV-A(Intelligent)

2．Temperature range:RT+10℃～70℃

3．Temperature uniformity:±3℃ Temperature fluctuation:±0.5℃

4．Humidity range:≥75%RH

5．Centre distance between the lamp:65~70mm

6．Distance from sample to lamp:55mm

7．Wavelength ultraviolet light:UV-A340 Wavelength range:315～400nm(Its peak:340nm)

8．Standard Test Sample Size:75×150mm 21 pieces

9．Irradiation intensity:0.30-1.1W/㎡ / adjustable 340nm (Setting radiation intensity value through touch screen)

10. Radiation control: intelligent control of imported radiation intensity from Germany, real-time feedback through irradiance, automatic compensate the setting value .

11．Conform to standard:GB/T 14522-93 ASTM G 154,ISO 4892-1 ISO 11507 ASTMD 4329

Structure and material:

1．Testing room size:500 ×1140×400mm

2．Outside dimension:D660XW1400XH1550mm

3．◎Liner material:SUS304 Stainless steel plate

◎Outer shape is made of stainless steel;SUS304

4．The United States atas UV or other USA brand:UVA-340 Ultraviolet tube. Total are 8 pieces in two row, 40W/pc (Total are 12 pieces) Specification:Length:1220MM, Diameter:38MM

5．Water resources and consumption:Clean water or distilled water:8L/day(it is provided by customer)

6．Control system: H-UV (SIEMENS touch screen and PLC controller)

7．Main components: France Snyder and Japan OMRON

8. Automatic control radiometer: Imported intelligent radiation sensor, 0-5V signal output.

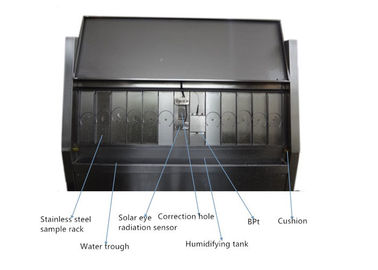

Picture for reference:

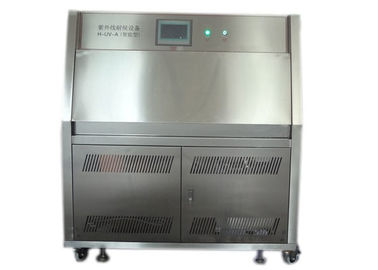

Complete machine chamber and control panel.

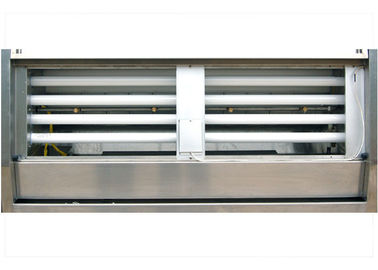

There are four nozzles on one side, total are 8 pieces on both sides.

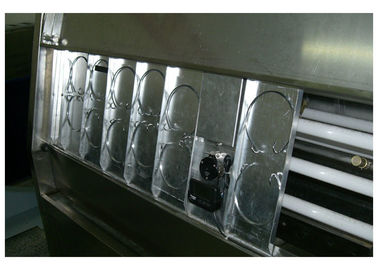

Sample rack 21 PCS, each specification:75X150MM(Ten on one side, eleven on the other side)
