IPX34 Integrated Waterproof Ingress Protection Test Equipment 576L Chamber IEC 60529

IPX34 Integrated Waterproof Ingress Protection Test Equipment 576L Chamber IEC 60529

  • IPX34 Integrated Waterproof Ingress Protection Test Equipment 576L Chamber IEC 60529
  • IPX34 Integrated Waterproof Ingress Protection Test Equipment 576L Chamber IEC 60529
  • IPX34 Integrated Waterproof Ingress Protection Test Equipment 576L Chamber IEC 60529
IPX34 Integrated Waterproof Ingress Protection Test Equipment 576L Chamber IEC 60529
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate(cost additional)
Model Number: HC-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Standard: IEC 60529 Inner Box Size (mm): 800×800×900(L×W×H)
Spray Ring Radius:(mm): 300. Needle Hole(mm): φ0 .4.
High Light:

environmental test chamber

,

material testing equipment

IPX34 WATERPROOF DEGREES TEST EQUIPMENT





Introduction:

IPX3/4 waterproof degrees test equipment are designed and manufactured according to IEC 60529 < Degrees of protection provided by enclosures (IP Code)>. This equipment is applied in IPX3 ,IPX4 waterproof degrees testing purposes, which are widely adopted by luminaire products, electrical and electronic products certification institutions, testing organizations and production enterprises for quality control.

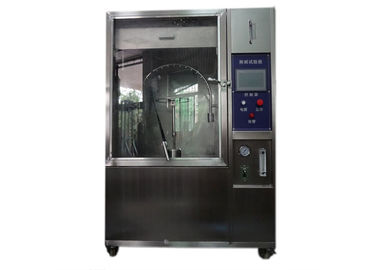

IPX34 Waterproof Degrees Test Equipment HC-500



Application:

This equipment is suitable for the test of electrical products which are enclosure and sealed in the rain environment whether can ensure the good performance of equipment and components. The scientific design of this equipment, so that the equipment can be realistically simulated dripping water, water spraying, splashing water etc. The application of the comprehensive control system and the frequency conversion technology makes the rotation angle of the test sample rack. The swing angle of the pendulum rod and the swing frequency of the spray water can be adjusted automatically.



Technical parameters:



1 Inner box size (mm):800×800×900(L×W×H)
2 Rotating speed(rpm):1 ~5 adjustable, turntable diameter:300mm(IP 1.2 standard. Turntable can be tilted 15°).The height of the turntable:200mm, it is adjustable.

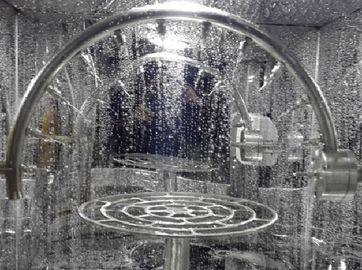

3 Spray ring radius:(mm): 300.
4 Swing angle range of the oscillating tube:45°, 120°,360°
5 Needle hole(mm):φ0 .4.
6 Distance between holes(mm):50.
7 Water flow of each hole:0.07 L/min +5%.
8 Spray pressure(Kpa):80-150.
9 Pendulum swing: Max.±150°.
10 Swing speed: IP3 15times/min; IP4 5times/min
11 Testing time:1-999,999min(can be set).
12 Rain pressure:80~150Kpa (adjustable).
13 The distance between the test equipment and the test sample:200MM. After the test, the function test can be proceeded after normal temperature recovery of 24 H.
14 All stainless steel or powder coating, visible toughened glass window.
15 Equipped with a modest turntable (used to place the sample) with adjustable speed.
16 Control system: Independent research and development.
17

Power Supply: 220V 50Hz.



Structural material:

1. High- quality acid -proof stainless steel 304 inner liner.

2. Outer box is made of stainless steel 304.

3. The sample table is equipped with a circular turntable with adjustable speed.



IPX34 Integrated Waterproof Ingress Protection Test Equipment 576L Chamber IEC 60529 0

Inside Waterproof Socket for Test Sample
