| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration Certificate(cost additional) |
| Model Number: | IP12-500 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Power Supply: | 220V 50Hz. | Testing Time: | 1-999,999min |
|---|---|---|---|
| Drip Box（mm）: | 600X600MM. | Needle Hole（mm）: | φ0 .4. |
| High Light: | waterproof tester,material testing equipment |
||

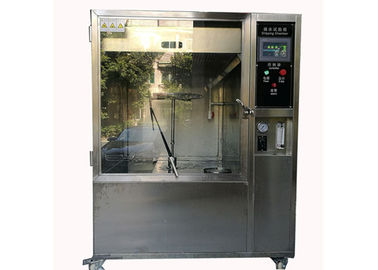

IPX1 And IPX2 Vertical Drip Rain Test Chamber IP12-500
Standard:IEC60529 degree of protection provided by enclosures (IP Code) of the IPX1 and IPX2, IEC60884-1, IEC60335-1, IEC60598-1.
Application:It is used for the testing of IPX1 and IPX2.
Test sample:The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components,car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.).
Parameters:
| 1 | Inner box size (mm):800×800×800(L×W×H)( Exterior dimension :1000X1200X1700MM). |
| 2 | Rotating speed(rpm):1 ~10 adjustable(IP 1.2 standard. Turntable can be tilted 15°). |

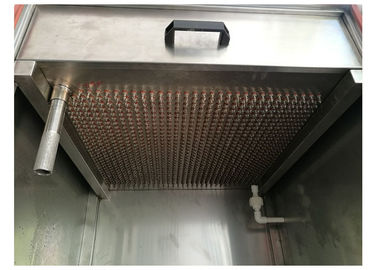

| 3 | Drip box(mm): 600X600MM. |
| 4 | The distance between the drip box and the test sample:200MM. |
| 5 | Needle hole(mm):φ0 .4. |
| 6 | Distance between holes(mm):20. |
| 7 | Dripping rate (Water flow):1MM or 3MM per minute, adjustable. |
| 8 | Testing time:1-999,999min(can be set). |
| 9 | The box body is made of square frame, four sides are made of tempered glass. |
| 10 | Equipped with a modest turntable (used to place the sample) with adjustable speed, diameter: 500MM. |
| 11 | Control system: Independent research and development. |
| 12 | Power Supply: 220V 50Hz. |
Structural material:
1. High- quality acid -proof stainless steel 304 inner liner.
2. Outer box is made of stainless steel201.
3. The sample table is equipped with a circular turntable with adjustable speed.
Safety protection device:
1.Power overload and short circuit protection.
2. Grounding protection
3. Water shortage protection
4. Alarm buzzer prompts.
