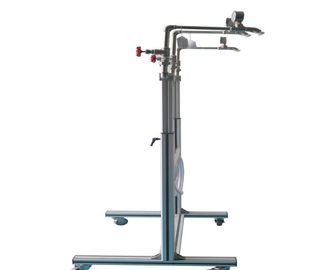

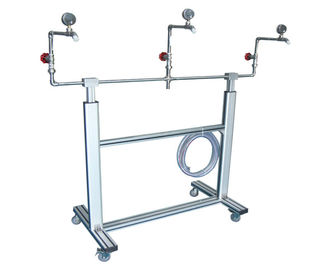

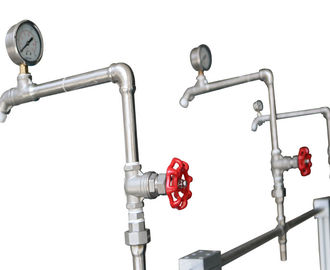

Movable Ingress Protection Test Equipment Luminaires 3 Heads Water Spray Test Apparatus

Movable Ingress Protection Test Equipment Luminaires 3 Heads Water Spray Test Apparatus

  • Movable Ingress Protection Test Equipment Luminaires 3 Heads Water Spray Test Apparatus
  • Movable Ingress Protection Test Equipment Luminaires 3 Heads Water Spray Test Apparatus
  • Movable Ingress Protection Test Equipment Luminaires 3 Heads Water Spray Test Apparatus
Movable Ingress Protection Test Equipment Luminaires 3 Heads Water Spray Test Apparatus
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HH0809
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 20 set per month
Contact Now
Detailed Product Description
Test Object: Enclosures Standard: UL484, UL1598, UL1993
Test: Water Spray Test Spray Heads: 3
Nozzle Spray Angle: 45° Spray Pressure: 34.5Kpa
Pressure Gauge: 3 Pressure Gauge Range: 0.25MPa
High Light:

environmental test chamber

,

waterproof tester

UL Water Spray Test Apparatus HH0809





Description:

This equipment is a device intended for use in wet locations shall be subjected to the test described in 24.2 and 24.3. Water shall not enter the ballast or device lampholder compartments.

Confirm to standards:

UL484;

UL1598;

 UL1993 and so on.



Test sample:  Self-ballasted lamps and lamp adapters and other luminaires.



Feature:

Adopt aluminum structure, splash structure can be adjusted; adopt the Foma wheels, it not only can move but can fix.



Technical parameters:

Model HH0809
Spray head 3, confirm to UL1598 figure 19.17.2
Nozzle spray angle 45°
Spray pressure 34.5Kpa
Structure Spray head distance: 710mm,confirm toUL1598 figure19.17.1, can go up and down, control valve for each spray head
Pressure gauge 3, range:0.25MPa, distance between the spray head 75mm
Dimensions WDH=1500mm×400mm×1500mm, weight:80kg
