| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HH0808 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | plywood |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 set per month |
| Test Object: | Enclosures | Standard: | IEC 60335-2-64 |
|---|---|---|---|
| Test: | Moisture Resistance | Test Method: | Splashed Drip Water |
| Bowl Size: | φ35×φ25×10mm | Nozzle: | Aperture φ2mm |
| Pressure Gauge: | 0.4Mpa | Splash Structure Lifting Stroke: | 1m |
| High Light: | environmental test chamber,material testing equipment |
||

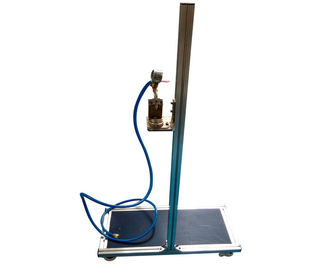

Splash Water Test Apparatus HH0808
Description:
This equipment is used to simulate rain dripping on the ground, the water splash on electrical products from the ground. It is used for the water proof performance test for the bottom of household electrical appliances, such as electric food processing machinery, electric stoves, washing machines, etc.
Confirm to standards:
IEC60335-2-64: 2002 safety of household and similar electrical appliances, particular requirements for commercial electric kitchen machines clause 15.1.1 and 15.1.2;
IEC60335-2-36 safety of household and similar electrical appliances, particular requirements for commercial electric cooking ranges, ovens, hobs and hob elements;
and so on.
Test sample: Commercial electric cooking ranges, ovens, hobs and hob elements
Feature:

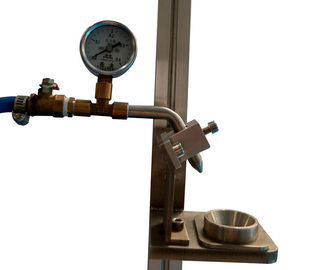

The device adopts aluminum structure, splash structure can be upward / downward adjusted; adopt the Foma wheels, it can move and also can be fixed; nozzle, bowls, and connecting tube are made of stainless steel, whole structure waterproof and anti-corrosion; equipped with a pressure gauge, real-time display the current hydraulic pressure.
Technical parameters:
| Model | HH0808 |
| Bowl | Size: φ35×φ25×10mm, made of stainless steel |

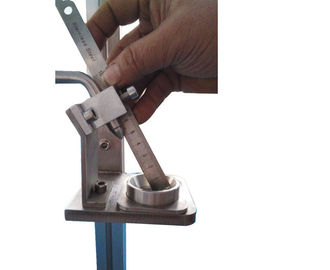

| Nozzle | Aperture φ2mm, with an inclination angle of 60°, have a distance of 50mm from the bottom of the bowl, are made of stainless steel |
| Position of the splash apparatus | The bowl is lower than the minimum edge of the apparatus of 50mm |
| Pressure gauge | 0.4Mpa |
| Test methods | Fix the splash apparatus, rotate the test sample (turntable is optional), test time is 5min, manual control |
| Splash structure lifting stroke | 1m |
| Dimensions | L*W*H=500mm×300mm×1200mm, weight:50kg |
