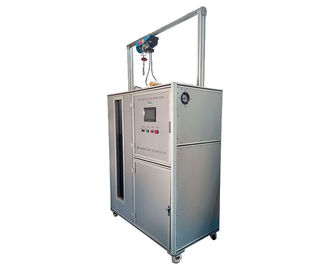

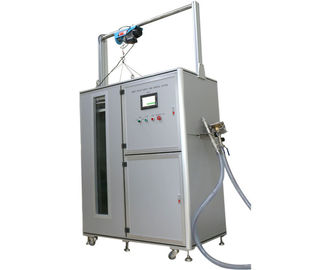

IEC 60529 IPX7 Test Smart Control Immersion Tank 500L IEC Test Equipment

Smart Water Supply And Control System HH0805

Description:

This is used for the testing of IPX7, it also provide water and electrical automatic control for IPX1~6 waterproofing test.

Confirm to standards:

IEC 60529 IPX7;

EN 60529 IPX7;

IEC 60884-1;

IEC 60598-1;

IEC 60335-1 and so on.

Test sample:  The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.).

Feature:

Integrated type of water storage tank and control cabinet.

Technical parameters:

1. Suitable for IPX1-6 water proof and UL dripping water, IPX7 water immersion test and automatic control of the whole waterproof test system;

2. Water supply method: constant temperature water supply, constant flow water supply, constant pressure water supply

3. Water supply control process: After user preset the water flow value and water pressure value on the touch screen, electronic meters or digital pressure gauge real-time monitor the current values, read the values into PLC through the data conversion, then automatically adjust the rotational speed of pump through the frequency converter.

4. There are large flow and small flow two ways water supply.

5. Large flow water supply:

(a) It is applicable to IPX5~IPX6 strong water spray test and water injection of IPX8

(b) Flow range: 10~100L/min

(c) Flow accuracy: ±0.5L/min

(d) Flowmeter: Turbine flowmeter

(e) Water pump: Stainless steel centrifugal pump

6. Small flow water supply:

(a) It is applicable to IPX1,IPX2,IPX3,IPX4 and UL waterproof test

(b) Flow range: 1~10L/min

(c) Flow accuracy: ±0.5L/min

Flowmeter: Turbine flowmeter

(d) Water pump: Stainless steel centrifugal pump

(e) Pressure range: 0.1-3Kg/cm²;

(f) Pressure digital display: Adopt digital pressure gauge;

7. Water storage tank:

(a) It is applicable to water storage of IPX5~IPX6 strong water spray test, water injection of IPX8, IPX7 immersion

(b) Volume: 500L

(c) Dimension: L600mmXW660mmXH1400mm

(d) Observation window: toughened glass window

(e) Observation window dimension: W200mmXH1250mm

(f) Depth gauge: stainless steel

(g) Depth gauge height: 1300mm, accuracy 1mm

(h) Liquid level control: float switch + overflow pipe

8. Control Cabinet:

(a) Flow detection: flow signal feedback through electronic flowmeter

(b) Flow setting: set on touch screen

(c) Temperature detection: PID

(d) Controller: Mitsubishi PLC

(e) Friendly interface: 7 inch, color touch screen

(f) Control function: constant flow water supply, constant pressure water supply, vertical drop rain motion control, oscillating tube rain motion control, rotation table motion control and test time control.

(g) Protection function: leakage protection, overload protection, short circuit protection.

9. Water supply pipeline: water supply of this equipment using PVC hose, it is assigned to each device according to the site layout , and controlled by the electromagnetic water valve.

10. Install the drainage valve on the water supply pipeline, it will automatic discharge the water after the test is completed.

11. Filter: stainless steel shell, fine filter element.

12. Machine body material: aluminum alloy profile.

13. Appearance size(WXDXH): 1400X750X1600mm.
