IP4X 1.0mm Wire Ingress Protection Test Equipment Against Access To Hazardous Parts

IP4X 1.0mm Wire Ingress Protection Test Equipment Against Access To Hazardous Parts

Brand Name: HongCe
Model Number: HT-I04
MOQ: 1 set
Price: Negotiatable
Payment Terms: T/T
Supply Ability: 20 set per month
Detail Information
Place of Origin:
China
Certification:
Third part calibration certificate(cost additional)
Test Object:
Enclosures
Standard:
IEC 60529, EN 60529
Test:
Protection
Test Rod Diameter:
1.0mm
Length:
100mm
Test Force:
1N
Packaging Details:
plywood
Highlight:

environmental test chamber

,

material testing equipment

Product Description

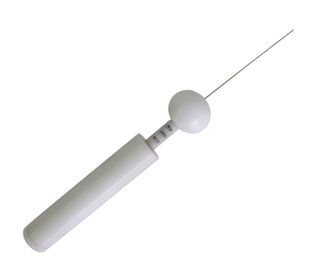

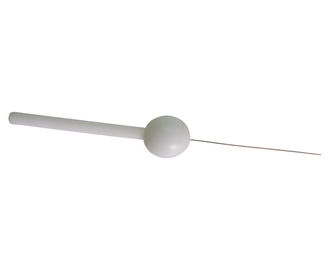

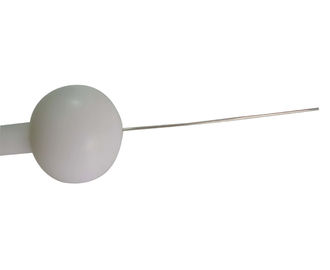

Test Wire Probe D HT-I04





Description:

This wire probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a wire.

Confirm to standards:

IEC 60529 IP4X;

EN 60529 IP4X;

IEC 61032-1 Figure 4;

IEC 60065 and so on.



Test sample: Easily accessible enclosure live parts or mechanical parts.



Feature: It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force.



Technical parameters:

Model HT-I04 HT-I04T
Name Test rod probe D Test rod probe D with force
Probe diameter 1.0mm 1.0mm
Shpere diameter 35mm 35mm
Handle diameter 10mm 10mm
Handle length 100mm -
Test force - With force of 1N
Applied standard IEC 61032-1 IEC 60529
