Insulating Material Ingress Protection Test Equipment IP1X Test 50mm Rigid Sphere

Name: Insulating Material Ingress Protection Test Equipment IP1X Test 50mm Rigid Sphere
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HT-I01
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HT-I01
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Test Object:

Enclosures

Standard:

IEC 60529, EN 60529

Test:

Protection

Sphere:

Diameter 50mm Metal

Handle Or Guard:

Insulating Material

Test Force:

50N

Packaging Details:

plywood

Highlight:

waterproof tester

material testing equipment

Product Description

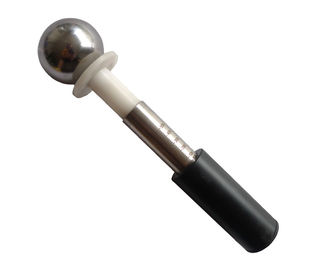

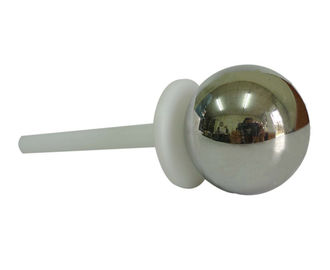

Test Sphere Probe HT-I01

Description:

This probe is intended to verify protection the back of hand of persons against access to hazardous parts. It is also the necessary probe used to prevent the hazardous parts and solid foreign objects from entering.

Confirm to standards:

IEC 60529 IP1X;

EN 60529 IP1X;

IEC 61032 Figure 1;

IEC60065 and so on.

Test sample: Easily accessible enclosure live parts or mechanical parts.

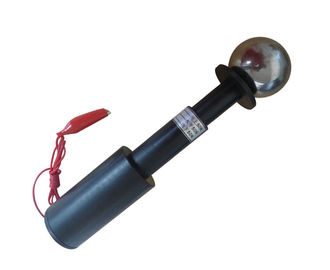

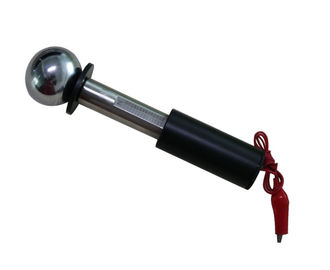

Feature: This test probe can be customized. It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer). The probe whose model number is with "T" is with force.

Technical parameters:

Model	HT-I01	HT-I01T
Name	Test probe A	Test probe A with force
Rigid test ball diameter(metal)	50mm	50mm
Baffle diameter(nylon)	45mm	45mm
Baffle thickness	4mm	4mm
Handle diameter(nylon)	10mm	10mm
Handle length	100mm	100mm
Test force	-	with force of 0-50N

Insulating Material Ingress Protection Test Equipment IP1X Test 50mm Rigid Sphere 0
