Place of Origin: | China |
Brand Name: | HongCe |
Certification: | Third part calibration certificate(cost additional) |
Model Number: | HX9804 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiatable |
Packaging Details: | plywood |
Delivery Time: | 20 working days |
Payment Terms: | T/T |
Supply Ability: | 20 set per month |
Test Object: | Non-separable Thin Sheets | Standard: | IEC 60950-1, IEC 61558-1, IEC 60065-1 |
---|---|---|---|
Test: | Mandrel Test | Stations: | 1 |
Weights: | 50N * 3pc | Test Mandrel: | Triangle Bar With A Tip |
Rotate Angle: | 230° | Dimension: | 240mmx 240mmx 600mm |
Highlight: | iec testing equipment,iec tester |

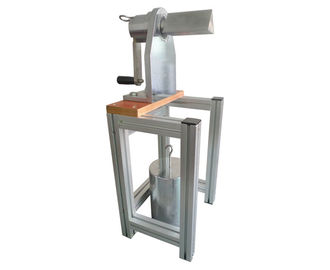

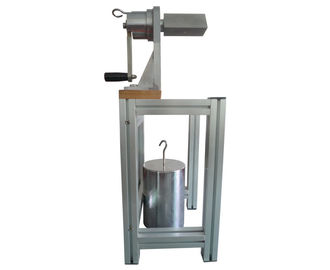

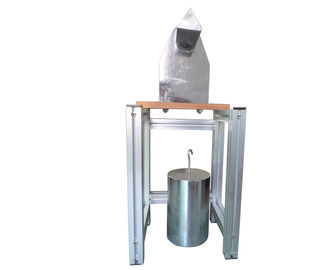

Mandrel Test Device HX9804
Description:
This device is used to test the Insulation anti damage strength verification for non separable thin layer materials.
Confirm to IEC60950 Safety of information technology equipment, IEC60065-1 Audio, video and similar electronic apparatus-Safety requirements, IEC 61558-1.
Test sample: non-separable thin sheets of audio video apparatus.
Feature: The position of 10° and 230° are set with mechanical limit, not only to ensure the accuracy of the test angle, but also to achieve a simple operation method; weight with a hanging ring, in case of a point is damaged because of too large pull force.
Technical parameters:
Test object | non-separable thin sheets of audio video apparatus |
Reference standard | IEC 60950-1, IEC 61558-1 |
Test | mandrel test |
Station | 1 |
Weights | 50N * 3pc |
Test mandrel | Triangle bar with a tip |
Rotate angle | 230° |
Test times | 3 times |
Dimension | 240mmx 240mmx 600mm |
Optional | withstand voltage tester |
