Plug Insulation Sheath Abrasion Tester for IEC 60884 Compliance Testing | Precision IEC Test Equipment for Plug Insulation Sleeve Wear Resistance

Reliable Wear Resistance Testing for Insulated Plug Pins with Accurate Load Control and Repeatable Test Results

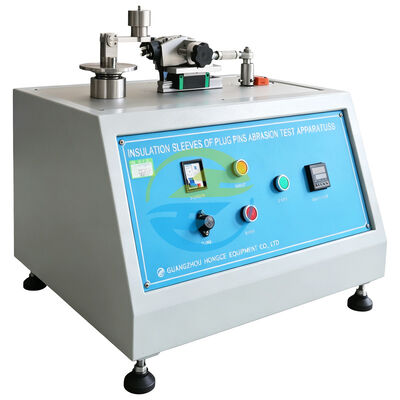

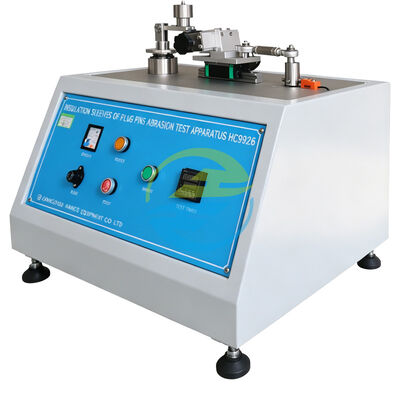

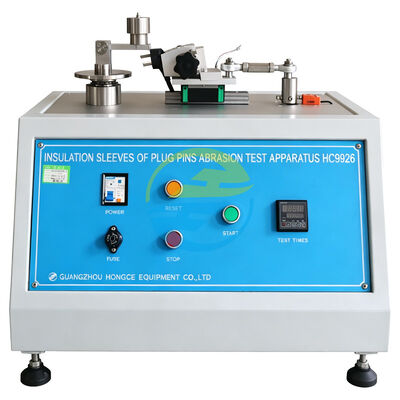

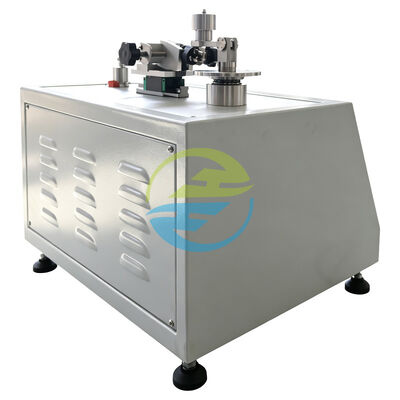

The HongCe Plug Insulation Sheath Abrasion Tester is a professional laboratory testing instrument developed to evaluate the abrasion resistance of insulating sleeves fitted on plug pins in accordance with IEC 60884-1 requirements. The equipment accurately simulates repeated mechanical friction under a specified load to determine whether the insulating sleeve maintains its protective function after continuous wear.

Designed for electrical appliance manufacturers, plug and socket manufacturers, testing laboratories, certification organizations, and quality inspection departments, this tester delivers highly repeatable testing results through a stable reciprocating motion system, precision loading mechanism, and programmable cycle counter.

Every electrical plug entering the global market must demonstrate consistent mechanical durability and electrical safety. The insulating sleeve covering plug pins plays a critical role in preventing accidental contact during insertion and removal. Any premature wear may affect product conformity and user confidence.

The HongCe Plug Insulation Sheath Abrasion Tester has been engineered specifically to reproduce the abrasion conditions specified by IEC standards. By applying a constant test load and controlled reciprocating movement, the equipment evaluates whether the insulating sleeve continues to provide adequate protection after repeated mechanical wear.

Whether you manufacture household plugs, industrial connectors, extension cords, or appliance power cords, this tester provides dependable performance throughout routine inspections, type testing, and product development.

Insulating sleeves are small components, yet they perform an essential function in electrical safety. Continuous insertion and removal, transportation, handling, and long-term use may gradually wear the insulating material.

Abrasion testing helps manufacturers verify that:

• The insulating sleeve remains firmly attached to the plug pin.
• The insulation material resists mechanical wear.
• The sleeve maintains dimensional stability after repeated abrasion.
• The product continues to comply with IEC requirements.
• Manufacturing consistency is maintained across production batches.
• Product quality meets international market expectations.

Reliable abrasion testing also reduces production risks by identifying material or manufacturing issues before products reach customers.

The tester simulates the reciprocating abrasion process required by IEC standards.

A plug sample is securely fixed in the dedicated fixture. A standard abrasive element applies a constant 4 N load to the insulating sleeve while the machine performs reciprocating linear movements at 30 ±1 movements per minute.

The operator presets the desired number of abrasion cycles. Once the test begins, the precision transmission mechanism maintains a constant stroke and uniform movement until the preset cycle count is reached. The equipment then stops automatically.

After testing, the insulation sleeve is visually inspected and measured according to the applicable IEC requirements to determine whether the product remains compliant.

This standardized testing process ensures repeatable results between different operators and laboratories.

IEC 60884-1 — Plugs and Socket-Outlets for Household and Similar Purposes

This standard specifies the mechanical, electrical, dimensional, and safety requirements for plugs and socket-outlets intended for household and similar applications.

The abrasion tester is used to evaluate the durability of insulated plug pins under the mechanical wear conditions described in the standard.

HongCe is a professional manufacturer specializing in IEC testing equipment for electrical products. We integrate research and development, mechanical design, precision manufacturing, quality inspection, and global technical support into one complete solution.

Over the years, HongCe has developed an extensive range of testing instruments covering electrical safety, mechanical performance, environmental simulation, IP protection, flammability, cable testing, household appliance testing, plug and socket testing, lighting product testing, and many other compliance applications.

Our equipment is trusted by manufacturers, laboratories, certification organizations, universities, and research institutions worldwide.
