Heavy-Duty Impact Drill Durability Testing Equipment for IEC 60745 Power Tool Endurance Verification

Heavy-Duty Impact Drill Durability Testing Equipment for IEC 60745 Power Tool Endurance Verification

Brand Name: HongCe
Model Number: HDD8303
MOQ: 1 set
Price: Negotiatable
Payment Terms: T/T
Supply Ability: 5 set per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Calibration Certificate (cost additional)
Standard:
IEC 60745-2-1, IEC 60745-2-6
Warranty:
1 Year
Control:
PLC Touch Screen
Test Cycle:
0-999999
Air Source:
5~8 Bar
Load Voltage:
0-250V Adjustable
No-load Rotation Angle:
0°,90°,180°
Steel Ball:
Φ38mm
Packaging Details:
Plywood
Product Description
Heavy-Duty Impact Drill Durability Testing Equipment for IEC 60745 Power Tool Endurance Verification
Product Overview

The Heavy-Duty Impact Drill Durability Testing Equipment is a professional IEC Test Equipment solution designed for endurance and reliability evaluation of electric impact drills and hammer drills used in residential, commercial, and industrial applications.

Why Durability Testing Matters for Impact Drills

Modern impact drills are subjected to repeated mechanical loads, rotational stress, and vibration throughout their service life. Manufacturers must ensure that products maintain performance, safety, and structural integrity after prolonged operation.

  • Verify product endurance
  • Improve product quality consistency
  • Reduce warranty claims
Features
  • High-Precision Durability Evaluation

    Accurately simulates repeated operating cycles required by IEC standards.

  • Automatic Testing Operation

    Reduces operator intervention and improves testing efficiency.

  • Stable Mechanical Loading System

    Provides consistent test conditions throughout long-duration endurance testing.

  • Adjustable Test Parameters

    Supports different impact drill specifications and testing requirements.

  • Industrial-Grade Construction

    Designed for continuous laboratory operation.

Applicable International Standards
StandardClauseDescription
IEC 60745-2-1Clause 19Abnormal Operation
IEC 60745-2-1Clause 20Stability and Mechanical Hazards
IEC 60745-2-1Clause 21Mechanical Strength
IEC 60745-2-1Clause 22Construction Requirements
IEC 60745-2-1Clause 24Components
IEC 60745-2-1Durability Test RequirementsEndurance Verification of Impact Drills
Technical Specifications
No.ItemSpecifications
1Power supply220V/60Hz
2Air source5~8 bar
3Electrical controlMITSUBISHI PLC, 7 Inch Touch screen
4Load voltage0-250V adjustable, current display
5No-load rotation angle0°,90°,180°, can manual control clockwise or counter clockwise
6No-load rotation rate0-360°/s, preset
7Power on time0-999.9s, preset
8Power off time0-999.9s, preset
9Test time0-9999h, preset
10Total test time0-9999h, preset
11Interval time0-9999min, preset
12Load pressure100,125,150,175,200,250,300,350,400N preset
13Impact head0.7,1.4,2.3,3.4kg (include the connect handle), use according to table 101
14Steel ballΦ38mm
15Steel plate100,140,180,220mm, use according to table 101
16Rubber plateA set of 4, Matching with steel plate and steel base
17Steel basebase weight 90kg, equipped with 9 pcs 30kg weights
18Dimension

Control cabinet 60*40*75cm, about 100kg;

Test rack 40*40*200cm, about 390kg

Testing Objects
  • Electric Impact Drills
  • Rotary Hammer Drills
  • Hammer Drills
  • Corded Impact Drills
  • Cordless Impact Drills
  • Professional Construction Drills
Core Technology Advantages
  • Precision Mechanical Simulation Technology

    Reproduces actual operating conditions specified in IEC standards.

  • Stable Impact Loading System

    Ensures repeatable and reliable testing results.

  • Intelligent Control System

    Provides accurate cycle management and automated testing.

  • Industrial Safety Architecture

    Designed for laboratory and certification environments.

  • High Repeatability

    Supports reliable comparison between different product batches.

Detailed images

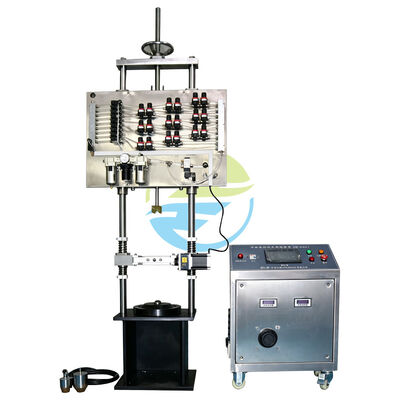

Heavy-Duty Impact Drill Durability Testing Equipment for IEC 60745 Power Tool Endurance Verification 0

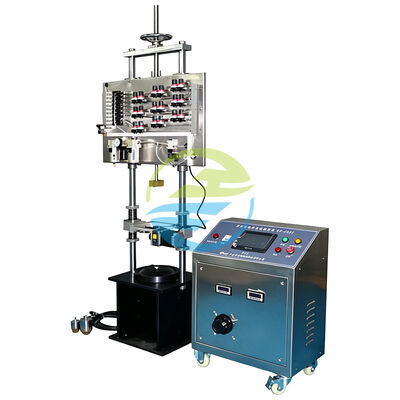

Heavy-Duty Impact Drill Durability Testing Equipment for IEC 60745 Power Tool Endurance Verification 1

Heavy-Duty Impact Drill Durability Testing Equipment for IEC 60745 Power Tool Endurance Verification 2

FAQ
  1. Q1: Which standards does this equipment comply with?

    A: The HDD8303 is designed according to IEC 60745-2-1 requirements for impact drill durability testing.

  2. Q2: What products can be tested?

    A: Electric impact drills, hammer drills, rotary hammer drills, and similar power tools.

  3. Q3: Is customization available?

    A: Yes. HongCe provides customized fixtures and special testing solutions according to customer requirements.

  4. Q4: Can the equipment be used for certification testing?

    A: Yes. It is suitable for compliance verification and certification preparation testing.

  5. Q5: Does HongCe provide installation support?

    A: Yes. We provide remote installation guidance, operation training, and technical support.

  6. Q6: What is the equipment warranty period?

    A: Standard warranty and long-term technical service are available.
