Wire Damage Degree Test Fixture for IEC 60947-1 Cable Insulation Evaluation Adjustable 250–500mm Test Height Precision IEC Test Equipment

Brand Name:	HongCe
Model Number:	HC9903A
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	15 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Standard:

IEC60947-1

Test Height:

250~500mm

Diameter Of Gyration:

75mm

Test Rate:

10±2 RPM

Diameter Of Ferrule Hole:

6.5~28.6mm

Test Times:

0～9999

Packaging Details:

plywood

Highlight:

IEC cable insulation test fixture

adjustable height test equipment

precision wire damage tester

Product Description

Wire Damage Degree Test Fixture for IEC 60947-1 Cable Insulation Evaluation

The Wire Damage Degree Test Fixture is a precision-engineered IEC Test Equipment solution designed to evaluate the mechanical damage level of insulated conductors under standardized conditions. Manufactured by HongCe, a direct source factory with deep expertise in IEC compliance testing instruments, this equipment ensures accurate, repeatable, and standards-compliant testing for low-voltage switchgear, controlgear, and electrical component manufacturers.

Key Features

Adjustable test height from 250 mm to 500 mm
Standardized impact structure compliant with IEC clauses
Stable mechanical framework ensuring repeatability
Precision-machined drop mechanism
75 mm specified structural configuration
High-strength corrosion-resistant metal construction

International Reference Standards

IEC 60947-1: Low-voltage switchgear and controlgear – Part 1: General rules

Clause 8.2.4 – Verification of mechanical properties of conductors
Clause 8.2.5 – Assessment of insulation damage after mechanical stress
Requirements for conductor impact and deformation verification
Evaluation of insulation resistance after mechanical damage
Visual and structural damage assessment standards

Technical Parameters

Model	HC9903A
Test rate	10±2 RPM
Diameter of gyration	75mm
Test times	0～9999
Weights	0.2,0.3, 0.4, 0.7, 0.9, 1.4, 2, 2.9, 4.5, 5.9, 6.8, 8.6, 9.5, 10.4, 14, 15, 16.8, 20, 22.7kg (weights superimposed)
Test height	250~500mm
Diameter of ferrule hole	6.5~28.6mm, 12 pc
Standards	IEC60998-2-2, IEC60947-1

Testing Objects

PVC insulated wires
XLPE insulated conductors
Flexible copper cables
Rigid installation wires
Control cables

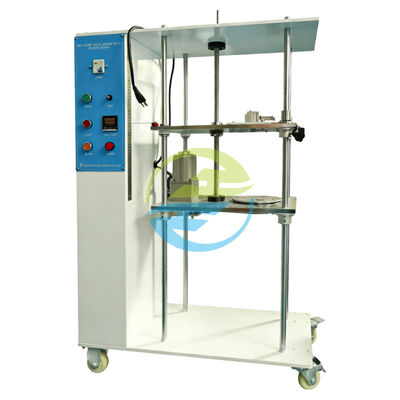

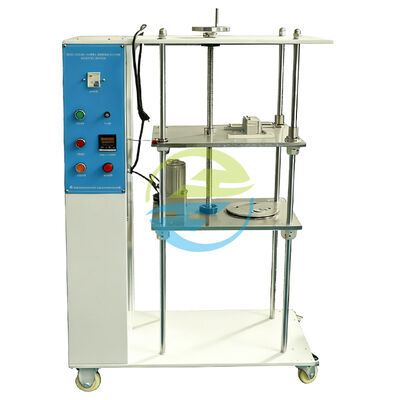

Product Image

Frequently Asked Questions

Is the equipment fully compliant with IEC 60947-1?

Yes, it is designed strictly according to IEC 60947-1 relevant clauses regarding conductor mechanical verification.

Can the test height be customized?

The standard adjustable range is 250–500 mm. Custom ranges can be engineered upon request.

Does the machine require electrical power?

No, it operates mechanically and does not require external power supply.

Can it test different wire diameters?

Yes, the fixture allows flexible specimen clamping for different conductor sizes.

Is calibration required?

Periodic mechanical inspection is recommended to maintain measurement accuracy.
