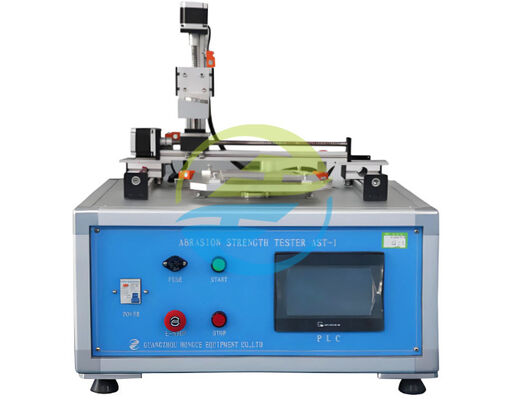

Adjustable Scratch Speed Coating Durability Tester with PLC + Touch Screen Control and Stepper Motor Drive IEC Test Equipment

Adjustable Scratch Speed Coating Durability Tester with PLC + Touch Screen Control and Stepper Motor Drive IEC Test Equipment

Adjustable Scratch Speed Coating Durability Tester with PLC + Touch Screen Control and Stepper Motor Drive IEC Test Equipment

Brand Name: HongCe
Model Number: HJ0604
MOQ: 1 set
Price: Negotiatable
Payment Terms: T/T,L/C
Supply Ability: 15 set per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Third part calibration certificate(cost additional)
Product Name:
Scratch Resistance Testing Equipment
Test Station:
One Station
Scratch Speed:
0-25mm/s Adjustable
Scratch Load:
10N±0.5N, 30N±0.5N
Scratch Angle:
80o To 85o
Control System:
PLC + Touch Screen
Application:
Scratch Resistance Testing
Drive Mode:
Stepper Motor Drive
Packaging Details:
Plywood
Highlight:

Adjustable Scratch Speed Coating Durability Tester

,

PLC + Touch Screen Control IEC Test Equipment

,

Stepper Motor Drive Scratch Resistance Tester

Product Description
Scratch Resistance Tester for Coating Durability Surface Protection Assessment
Surface durability extends beyond mere appearance—it reflects the underlying quality, reliability, and lifespan of your products. When coatings scratch easily or surfaces fail under light abrasion, it can lead to customer complaints, product returns, and compliance issues.
Precision Testing Solution
The HongCe Scratch Resistance Tester (Model HJ0604) provides laboratories, R&D teams, and manufacturers with precise, repeatable surface scratch performance evaluation. Its structural stability, smooth mechanical motion, and controlled loading design simulate real-world wear conditions in a highly controlled testing environment.
Engineered with precision and built for longevity, HongCe testers deliver stable performance year after year. Whether you're involved in material development, surface durability testing, coating evaluation, or product reliability verification, this tester offers dependable performance for your critical applications.
Key Features
  • Complies with IEC surface durability testing requirements
  • Precise and stable mechanical test structure
  • Adjustable loading force for various test conditions
  • Smooth linear movement for consistent scratch results
  • Supports multiple scratch tips and test methodologies
International Standards Compliance
  • IEC 60335-1 Household and Similar Electrical Appliances - Clause 21 Mechanical Strength, Clause 30 Resistance to Surface Damage
  • IEC 60695 Fire Hazard Testing Series - Pre-conditioning mechanical surface scratch evaluation
  • IEC 60884-1 Plugs and Socket Outlets - Clause 24 External Surface Durability
Technical Specifications
Parameter Specification
Input Power Supply AC 220V/50Hz
Test Station One station
Control System PLC + Touch Screen
Drive Mode Stepper Motor Drive
Scratch Speed 0-25mm/s adjustable, preset capability
Scratch Times 0-9999 times, preset capability
Scratch Distance Approximately 25% of insulation length, preset capability
Scratch Load 10N±0.5N (can be equipped with 20N weight to reach 30N±0.5N)
Scratch Pin Hardened steel pin with 40° conical end, tip radius 0.25mm±0.02mm
Scratch Angle 80° to 85° to the horizontal
Testing Capabilities
  • Surface scratch resistance evaluation
  • Coating hardness and protection level assessment
  • Abrasion and wear simulation
  • Surface finish durability testing
  • Coating adhesion performance under mechanical load
Product Images

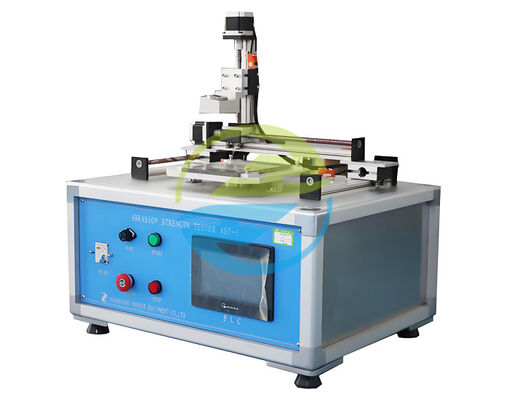

Adjustable Scratch Speed Coating Durability Tester with PLC + Touch Screen Control and Stepper Motor Drive IEC Test Equipment 0
Frequently Asked Questions
What materials can be tested with this Scratch Resistance Tester?
It supports coatings, plastic housings, metal coatings, films, varnishes, appliance surfaces, and various engineering materials.
Is it compliant with IEC requirements?
Yes. It conforms to IEC 60335, IEC 60884, and related mechanical durability clauses, making it suitable for certification and compliance testing.
What scratch tips are included?
Standard IEC-compliant scratch needles are provided. Additional custom scratch tools are available upon request.
Can I test different coating hardness levels?
Yes. The adjustable load force enables precise testing of coatings with varying hardness levels and surface treatments.
Is this equipment suitable for R&D?
Absolutely. Its high repeatability and stable mechanical structure make it ideal for material development and laboratory applications.
