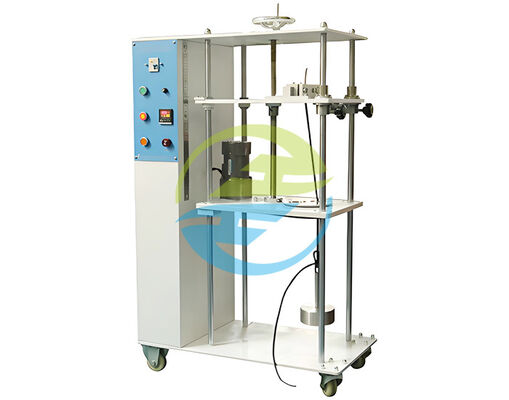

IEC60947-1 Compliant Wire Damage Degree Test Fixture with Adjustable 250~500mm Test Height and 75mm Gyration Diameter

Brand Name:	HongCe
Model Number:	HC9903A
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Standard:

IEC60947-1

Test Height:

250~500mm

Diameter Of Gyration:

75mm

Test Rate:

10±2 RPM

Diameter Of Ferrule Hole:

6.5~28.6mm

Test Times:

0～9999

Packaging Details:

plywood

Highlight:

IEC60947-1 compliant Wire Damage Degree Test Fixture

Adjustable test height 250~500mm IEC Mechanical Strength Tester

75mm diameter of gyration Insulation Integrity Evaluator

Product Description

Wire Damage Degree Test Fixture for IEC Mechanical Strength and Insulation Integrity Evaluation

Product Description

IEC60947 Wire Clamping Damage To And Accidental Loosening Of Conductors Flexion Tester 75mm

Wire Damage Degree Test Fixture from HeJin, an original factory specializing in IEC test equipment, is designed to help engineers clearly understand how electrical wires respond to pressure, abrasion, and mechanical impact. More than a testing device, it is a dependable tool that brings accuracy, trust, and repeatability to every laboratory focused on cable safety and product reliability.

Features

Fully compliant with IEC testing requirements
High mechanical precision for accurate damage evaluation
Robust metal construction designed for long service life
Adjustable test settings to fit various wire sizes
Smooth operation to minimize user error

International Standards

IEC 60884 1 Plugs and Socket Outlets
Clause 23 Mechanical Strength
Clause 24 Resistance to Damage
IEC 60227 PVC Insulated Cables IEC 60245 Rubber Insulated Cables
Clause 5 Mechanical Tests on Finished Wires
IEC 60335 1 Household and Similar Electrical Appliances
Clause 8 Protection Against Mechanical Hazards
IEC 62196 EV Cable and Connector Testing
Mechanical impact and abrasion tests
IEC 60695 Series Fire Hazard Testing
Mechanical pre conditioning for flammability evaluations

Technical Parameters

Model	HC9903A
Test rate	10±2 RPM
Diameter of gyration	75mm
Test times	0～9999
Weights	0.2,0.3, 0.4, 0.7, 0.9, 1.4, 2, 2.9, 4.5, 5.9, 6.8, 8.6, 9.5, 10.4, 14, 15, 16.8, 20, 22.7kg (weights superimposed)
Test height	250~500mm
Diameter of ferrule hole	6.5~28.6mm, 12 pc
Standards	IEC60998-2-2,IEC60947-1

Notice:

(1) This device equipment with 18 wire bushes of 9 size, diameter: 6.5mm, 9.5mm, 13mm, 14.5 mm, 15.9mm, 19.1mm, 22.2mm, 25.4mm and 28.6mm.

(2) Rotate radius of turn table center hole is 38mm, user can select appropriate wire bush according to test requirements for test sample.

(3) If the bush hole not big enough, need to bundle the wire into the hole, can replace a bigger wire bush.

(4) Height (H) deviation of ±15mm.

Table 1: Weights List

No.	Weight mass(kg)	Quantity
1#	0.2 with hook	1 pc
2#	0.3 with hook	1 pc
3#	0.4 with hook	1 pc
4#	0.7 with hook	1 pc
5#	0.7 through hole	2 pc
6#	0.9 with hook	1 pc
7#	0.9 through hole	2 pc
8#	1.4with hook	1 pc
9#	2 with hook	1 pc
10#	2 through hole	1 pc
11#	2.3 through hole	1pc
12#	4.5 with hook	1 pc
13#	4.5 through hole	1pc
14#	6.8 with hook	1 pc
15#	6.8 through hole	1 pc
16#	8 .2with hook	1 pc

Table 2: Weights Collocation Table

Required mass (kg)	Collocation
0.2	1#
0.3	2#
0.4	3#
0.7	4#
0.9	6#
1.4	8#
2	9#
2.9	9#+7#
4.5	12#
5.9	12#2*5#
8.6	14#+2*7#
9.5	9#+13#+11#+5#
10.4	12#+13#+2*5#
14	14#+13#+10#+5#
15	16#+15#
16.8	16#+13#+11#+2*7#
20	16#+15#+11#+10#+5#
22.7	16#+15#+13#+11#+7#

Detailed Images

FAQ

Can the device be customized?

Yes. As an original manufacturer, HongCe supports OEM/ODM, customized fixtures, special test loads, and special dimensions based on customer requirements.

Is it suitable for certification audits?

Absolutely. The fixture follows IEC mechanical test requirements and is frequently used in certification laboratories such as for CE, CB, and product quality inspection.

How soon can replacement parts be provided?

HongCe maintains stable long term supply of spare parts. Most components can be shipped within 3–5 working days.

Do you offer online training?

Yes. HongCe provides online video training, operation demonstrations, and installation guidance to ensure easy setup for new users.

Can the fixture be used for R&D and material comparison?

Yes. It is especially useful for comparing insulation performance, developing new cable materials, and improving product design.

What makes this device different from competitors?

HongCe manufactures the fixture with high precision machining, durable structural materials, and long life components. As a factory supplier, the device offers better stability, reliability, and value compared with regular trading companies.
