Vacuum Cleaner Endurance Tester IEC Test Equipment with 220V 2.5KW Power 2-10 Test Stations and 360° Torsion Angle

Name: Vacuum Cleaner Endurance Tester IEC Test Equipment with 220V 2.5KW Power 2-10 Test Stations and 360° Torsion Angle
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HC-XCQ001
Price: 5,000.00 USD
Availability: InStock

Brand Name:	Hongce
Model Number:	HC-XCQ001
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	10 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Model:

HC-XCQ001

Exterior Color:

Gray Sheet Metal (custom Colors Available)

Material:

Aluminum Profile

Power Supply:

220V 2.5KW

Test Stations:

2-10 Independent Testing Stations (customizable)

Detection Voltage:

AC/DC Switching Detection (optional)

Packaging Details:

Plywood

Highlight:

220V 2.5KW IEC Test Equipment

2-10 test stations Vacuum Cleaner Endurance Tester

360° torsion angle Twist and Swing Tester

Product Description

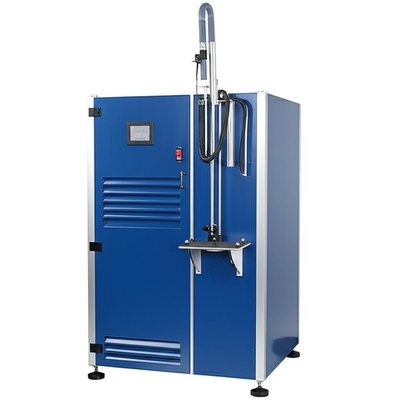

Vacuum Cleaner Twist and Swing Endurance Tester – Reliable IEC Test Equipment for Long-Life Performance Verification

This vacuum cleaner tester evaluates the durability of cords and bodies under repeated twisting and turning motions. It accurately simulates real-world usage conditions to ensure vacuum cleaners maintain safety and performance over extended periods, even under rigorous use. Ideal for appliance manufacturers, testing laboratories, and quality control departments.

Key Features

High-precision servo control: Ensures consistent torsional and oscillating movements for repeatable test results
Programmable interface: Supports multi-segment test parameter settings for various vacuum cleaner specifications
Multi-station design: Enables simultaneous testing of multiple samples to improve efficiency
Intelligent safety protection: Includes abnormal shutdown and overload protection for safe operation
Data export capability: Automatically records testing process and generates CSV reports for quality traceability

Compliance Standards

IEC 60335-1 Household and Similar Electrical Appliances - Safety, Clause 25.14: Requirements for bending and torsion testing of power cords and connections

IEC 60335-2-2 Particular requirements for vacuum cleaners, Clause 21: Durability testing of cables and hoses

Technical Specifications

Parameter	Value
Test Stations	2-10 independent testing stations (customizable)
Test Bench Dimensions	800×600mm (varies by station count)
Test Torsion Angle	Adjustable from 360° to 0° to 360°
Horizontal Swing Angle	Adjustable from 90° to 0° to 90°
Control Method	PLC + 7-inch Touchscreen Display
Detection Voltage	AC/DC switching detection (optional)
Count/Time Range	0-9,999,999 times
Test Mode	On/off setting for test count/time
Drive Source	Servo Motor
Flooring	Pine Wood Flooring
Power Supply	220V 2.5KW
Equipment Dimensions	1680×1250×1450 mm

Applications

Vacuum cleaner cable life testing
Power cord connection durability evaluation
Hose-body connection fatigue analysis
Cable sheath torsional fatigue testing
Home appliance quality inspection and design verification
Factory production line sampling verification

Service & Support

One-year comprehensive machine warranty
Remote technical support and video training
Rapid-response spare parts supply system

Our professional technical team provides prompt responses worldwide to ensure your equipment maintains optimal performance.
