Steel Ball Impact Test Apparatus with 50mm Steel Ball Diameter 500±25g Weight and 0.5-1.5m Adjustable Drop Height for Mechanical Strength Testing

Brand Name:	HongCe
Model Number:	SH-12
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Steel Ball Diameter:

50mm

Steel Ball Weight:

500±25g

Drop Height:

0.5-1.5m Adjustable

Clamping Release:

Electronic Control

Warranty:

1 Year

Standard:

IEC 60065:2014, IEC 60950-1 Etc

Usage:

Drop Impact Test

Test Sample:

Luminaries, Audio

Packaging Details:

plywood

Highlight:

50mm Steel Ball Diameter Impact Test Apparatus

500±25g Steel Ball Weight IEC Test Equipment

0.5-1.5m Adjustable Drop Height Mechanical Strength Tester

Product Description

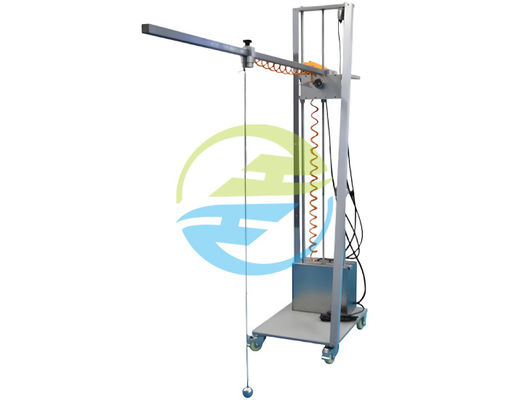

Steel Ball Impact Test Apparatus for Electrical Enclosure Impact Resistance

IEC 60065 Test Equipment for Mechanical Strength Testing

Eliminate product recalls and safety concerns caused by weak casing materials. The HongCe Figure 8 steel ball impact tester, designed for IEC compliance testing, evaluates the durability of lighting fixtures, appliances, and electronic products against everyday mechanical impacts.

Compliance Standards

IEC 60950-1 Clause 4.2.5
IEC 60598-1 Clause 4.13.4a)
IEC 60065

Primary Applications

Evaluates mechanical strength and protection level of product housings when subjected to impact forces. Essential for:

Design verification during R&D phases
Quality control sampling in production environments
Type testing in third-party certification laboratories

Test Objects

Lighting Fixtures: Ceiling lights, downlights, streetlights, floodlights, and grille light housings
Household Appliances: Coffee makers, blenders, air purifiers (plastic/metal housings)
Information Technology Equipment: Monitor housings, routers, power adapters
Electrical Accessories: Switch panels, sockets, junction boxes
Other Electronics: Any devices requiring mechanical strength verification

Technical Parameters

Impact Steel Ball	Diameter 50mm, 500±25g
Drop Height	0.5-1.5m adjustable
Lift Mechanism	Electric operation
Release Mechanism	Electronic control
