Vertical Drip Water Test Equipment with 7 Inch Color Touch Screen 200mm Drip Height and Φ0.4mm Needle Hole for IPX1 to IPX2 Testing

Vertical Drip Water Test Equipment with 7 Inch Color Touch Screen 200mm Drip Height and Φ0.4mm Needle Hole for IPX1 to IPX2 Testing

Brand Name:	HongCe
Model Number:	HH0801
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Drip Area:

1000mm*600mm (customizable)

Test Range:

IPX1 To IPX2

Needle Hole:

Φ0.4mm

Drip Height:

200mm

Control And Operation:

PLC Intelligent Control, 7 Inch Color Touch Screen Operation

Turntable Diameter:

Ø800mm (customizable)

Rotating Speed:

1r/min

Testing Time:

0-999.9min

Packaging Details:

plywood

Highlight:

7 Inch Color Touch Screen Vertical Drip Water Test Equipment

200mm Drip Height IP Testing Machine

Φ0.4mm Needle Hole Waterproof Testing Device

Product Description

IPX1 IPX2 Vertical Drip Water Test Equipment | IEC 60529 Ingress Protection Testing Machine

The Vertical Drip Water Test Equipment from HONG CE, a trusted original manufacturer in IP testing solutions, is designed for precise evaluation of water ingress protection levels (IPX1 and IPX2). This device ensures that your products meet global waterproof testing standards, providing reliable results for industries demanding quality and durability.

Key Features

Complies with IEC 60529 standards for IPX1 and IPX2 waterproof testing
Adjustable drip rate and height to simulate real environmental rainfall scenarios
High-precision flowmeter and water distribution system for consistent droplet formation
Motorized sample table with adjustable angle (0°–15°) for IPX2 testing
Stainless steel structure (SUS304) ensures long-term durability and corrosion resistance

International Reference Standards

IEC 60529: International Standard for Degrees of Protection by Enclosures (IP Code)
IPX1 Test Requirements: Vertical dripping water, dripping rate 1-1.5 mm/min, test duration 10 minutes
IPX2 Test Requirements: Water dripping at a 15° angle, dripping rate 3-3.5 mm/min, test duration 10 minutes (2.5 minutes per tilt position, totaling 4 positions)

Applications

Test for second characteristic numeral 1 & 2 with drip box. For assessing the protection against vertically falling water drops.

Test Objects

Electrical appliances (switches, sockets, plugs)
Automotive electronic modules
Outdoor luminaires

Detectable Parameters

Drip water penetration
Surface wetting resistance
Seal integrity under vertical water impact
Waterproof performance degradation under tilt angle

Technical Parameters

Item	Parameter
Water supply	Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit
Control and operation	PLC intelligent control, 7 inch color touch screen operation
Testing time	0-999.9min
Water tank size	Outline dimension:WDH=75014001750mm, fully enclosed water tank, SUS304 material
Drip test area	1000*1000mm, customizable
Drip height	200mm, adjustable
Dripping rate (Water flow)	1 mm/min or 3 mm/min switchable, adopt digital controlled rainfall technology
Needle hole	Φ0.4mm
Distance between holes	20mm
Supporting sample	15°bevel
Water tank lifting drive	Motor drive, screw guide rail to ensure the stable lifting and self-locking
Installation method	Wall mounted
Turntable	Rotating speed1r/min. Can be paused 150s at four aspects, Load bearing ≤150㎏electrical equipment, Diameter:800mm, Adjustable height of the adjustable telescopic tube: 300mm,1200mm-1500mm
Site requirements	Dedicated IP waterproof test room,The ground should be flat with illumination 10A waterproof leakage switch(or socket)used for equipment. With good function of inflow and drainage. Ground installation.
Area covered	WDH =1500mm1500mm3300mm, the size can be set according to customer's requirement

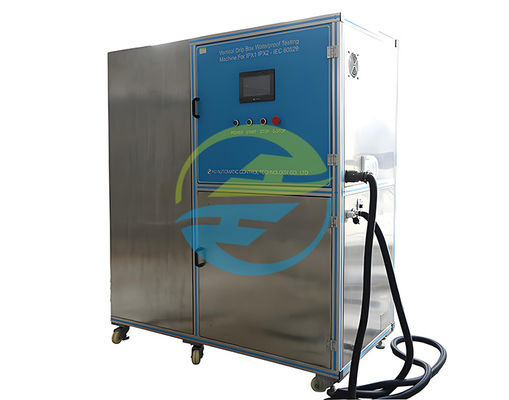

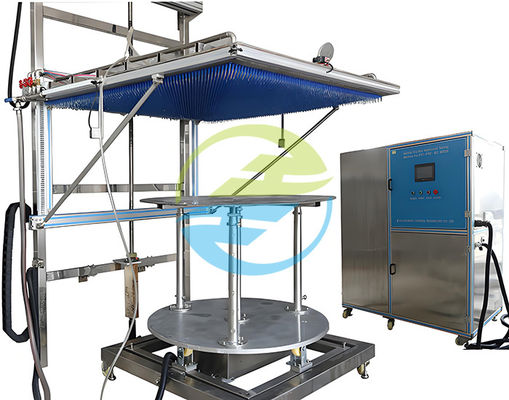

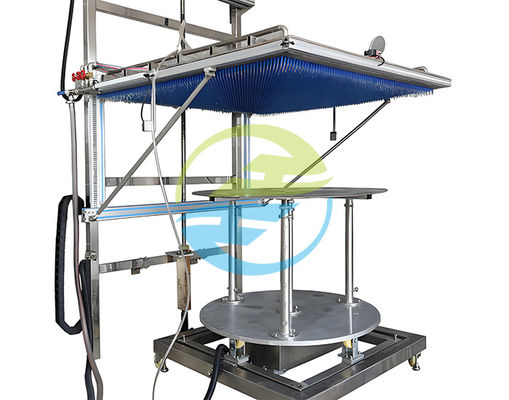

Product Images
