IPX8 Waterproof Tester with 1-5m Test Water Depth Range and Negative Pressure Range: -50~0KPA for Immersion Test Equipment

Brand Name:	HongCe
Model Number:	HC-IPTE-002
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C,T/T
Supply Ability:	5 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Test Water Depth Range:

1-5m

Pressure Adjustment Range:

Negative Pressure Range: -50~0KPA; Positive Pressure Range: 10~50KPA

Safety Valve Exhaust Pressure:

0.15MPa

Pressure Holding Time:

0-999999s

Protection Devices:

Safety Valve, Residual Current Circuit Breaker (RCCB) Protection

Warranty Period:

One Year

Packaging Details:

Plywood

Highlight:

1-5m Test Water Depth Range IPX8 Waterproof Tester

Negative Pressure Range: -50~0KPA Immersion Test Equipment

Positive Pressure Range: 10~50KPA IP Test Equipment

Product Description

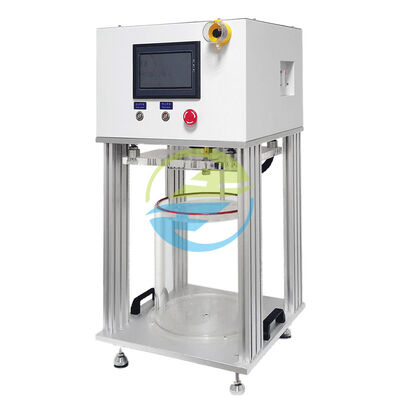

IPX8 Positive & Negative Pressure Waterproof Sealing Test Equipment

Verify your product's true waterproof capabilities with the HongCe IPX8 Waterproof Tester. This equipment simulates underwater conditions to accurately detect water ingress. Engineered by HongCe professionals, it delivers reliable, repeatable results for comprehensive waterproof validation.

Key Features

Precise positive & negative pressure control for IPX8 testing
Stable immersion tank with corrosion-resistant structure
Digital pressure monitoring with high accuracy
Automatic pressure holding and timing control
Transparent test chamber for real-time observation
User-friendly operation interface
High sealing performance with safety protection design

International Reference Standards

IEC 60529 - Clause 14.2.8 – IPX8: Equipment suitable for continuous immersion in water
ISO 20653 - Road vehicle protection against water ingress (IPX8 condition)
GB/T 4208 - Enclosure protection grades (equivalent to IEC 60529)
EN 60529 - European adoption of IP code testing

Technical Specifications

Parameter	Specification
External Dimensions	550550950mm
Internal Dimensions	270*310mm
Tank Wall Thickness	15mm
Tank Material	Acrylic Sheet
Sample Tray Dimensions	Diameter 250mm
Tray Height from Bottom	150mm
Equipment Weight	Approx. 80KG
Pressure Control Method	Automatic Adjustment
Pressure Error	±0.2m/±0.002 MPa

Equipment Overview

Frequently Asked Questions

Can the test pressure and immersion depth be customized?

Yes, IPX8 testing conditions are defined by agreement. We support full customization.

Is this equipment suitable for long-duration testing?

Absolutely. The system is designed for stable pressure holding over extended periods.

Can different sample sizes be tested?

Yes. The test chamber can be customized based on sample dimensions.

Is calibration required?

We provide factory calibration and offer periodic calibration support.

Does HongCe provide overseas technical support?

Yes, we support international customers with remote and on-site service.
